Module 5: Ring-width only model (RW-only)

Author

Andria Dawson and Kelly Heilman

Published

2025-08-14

Ring-width only

This module introduces the workflow for the case where the only data informing the model is the ring-width dataset. This dataset includes diameter at time of coring, and one or more ring-width time series for each sampled tree.

This workflow involves:

  1. Inferring growth using the state-space model;
  2. Sampling models in STAN: A (very brief) overview
  3. Visualizing process and data uncertainty

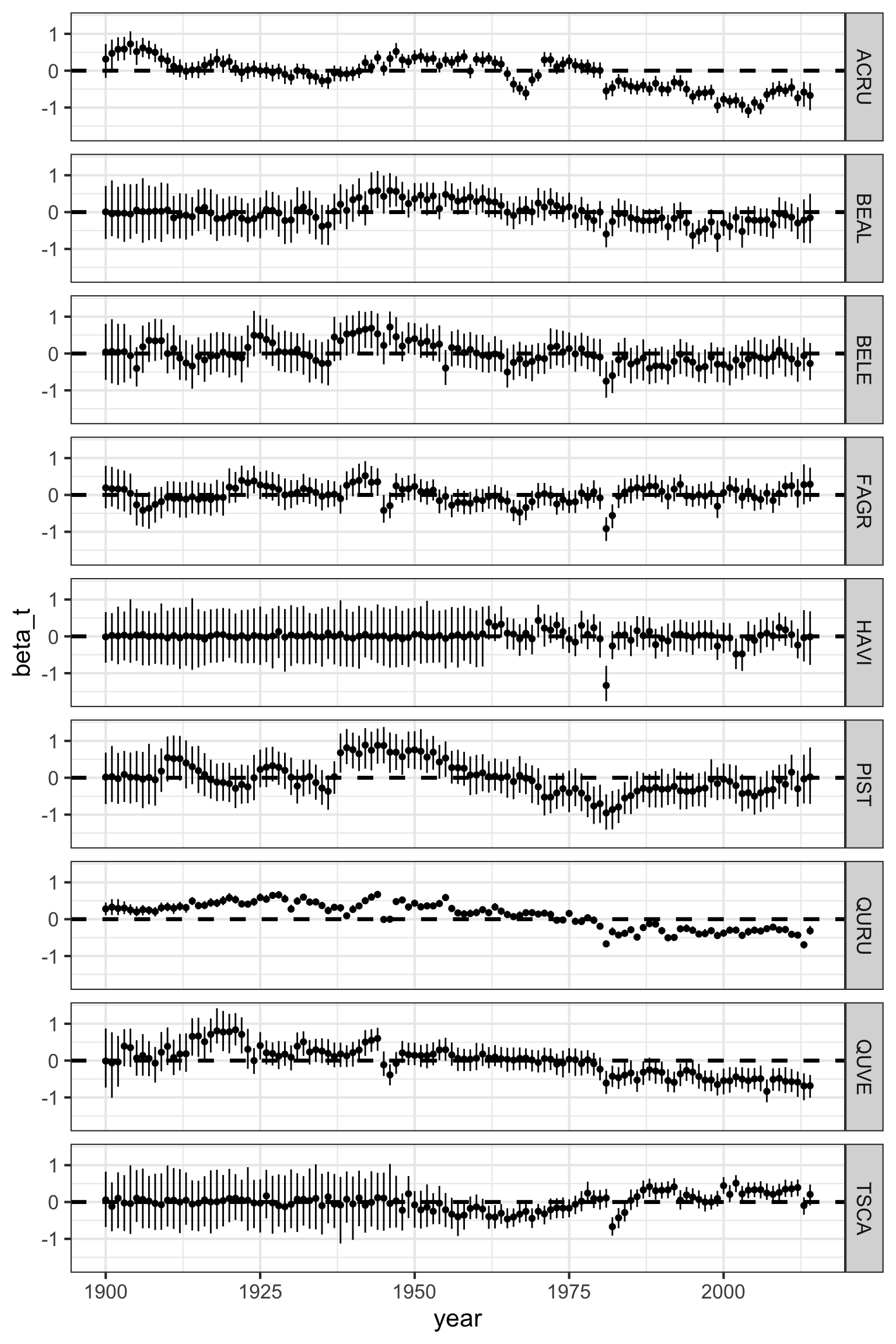

  4. Visualizing chronology-like effects: year random effects

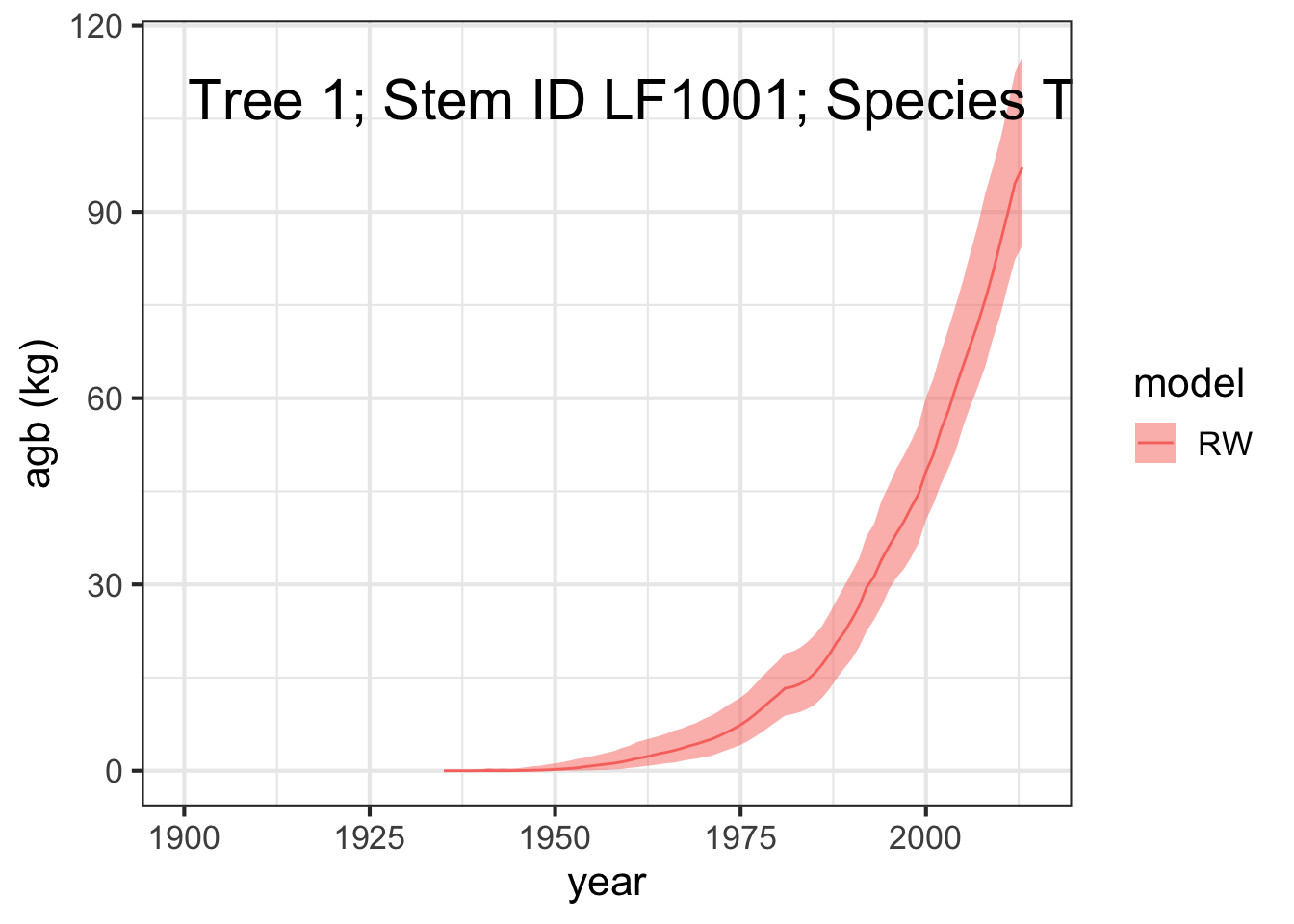

  5. Using inferred growth to determine tree-level biomass

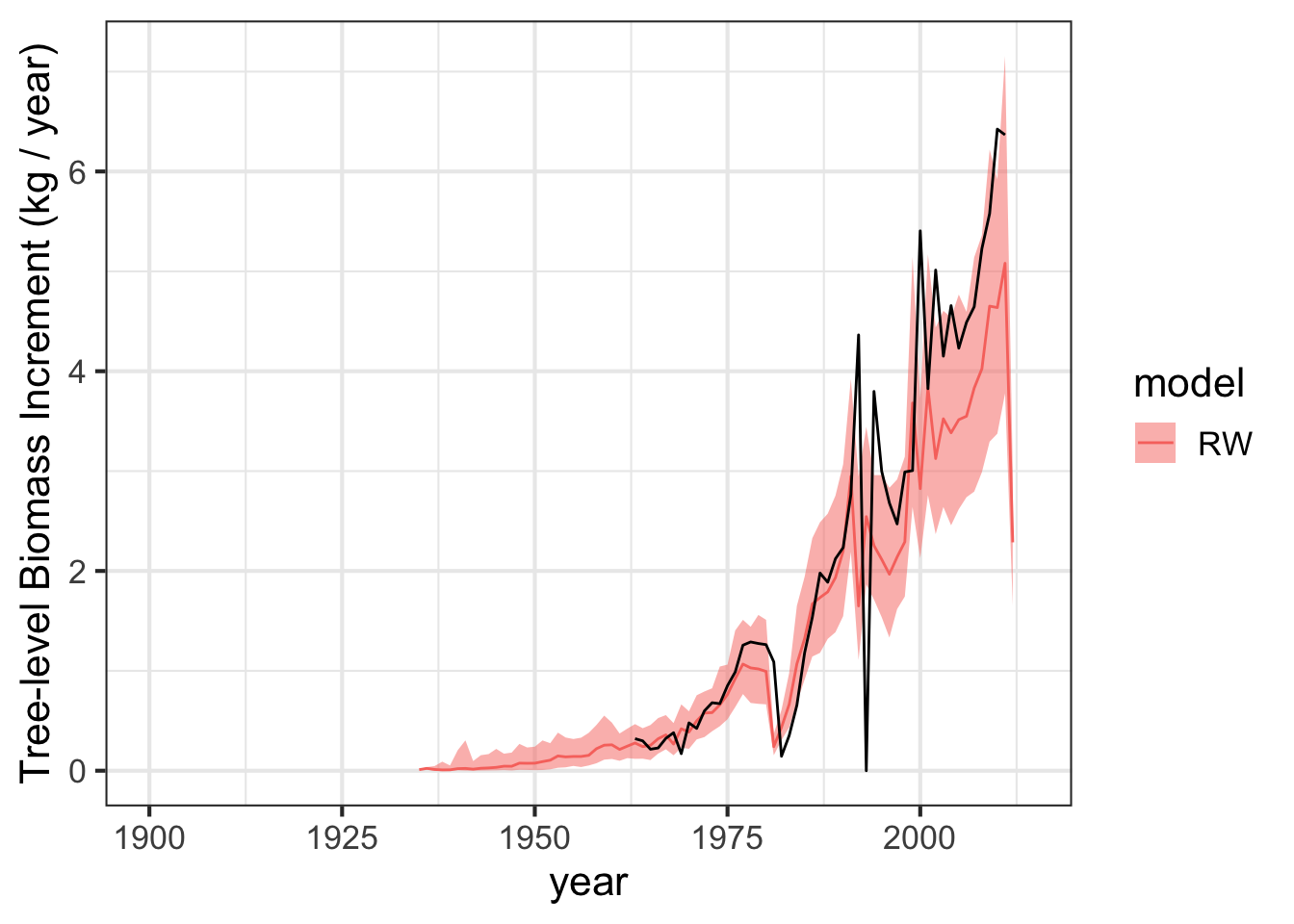

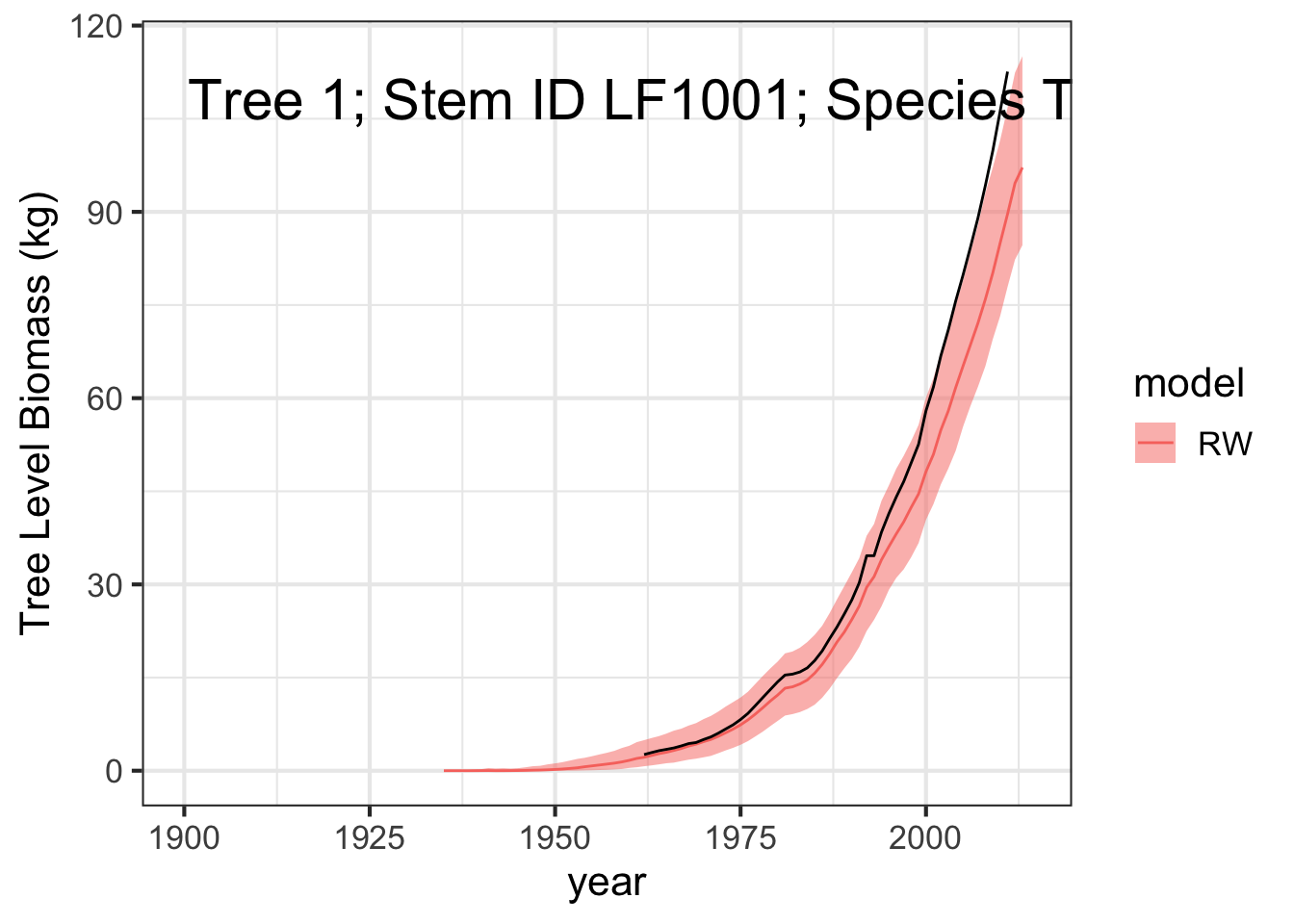

  6. Comparing tree-level RW-only model to data-based biomass estimates

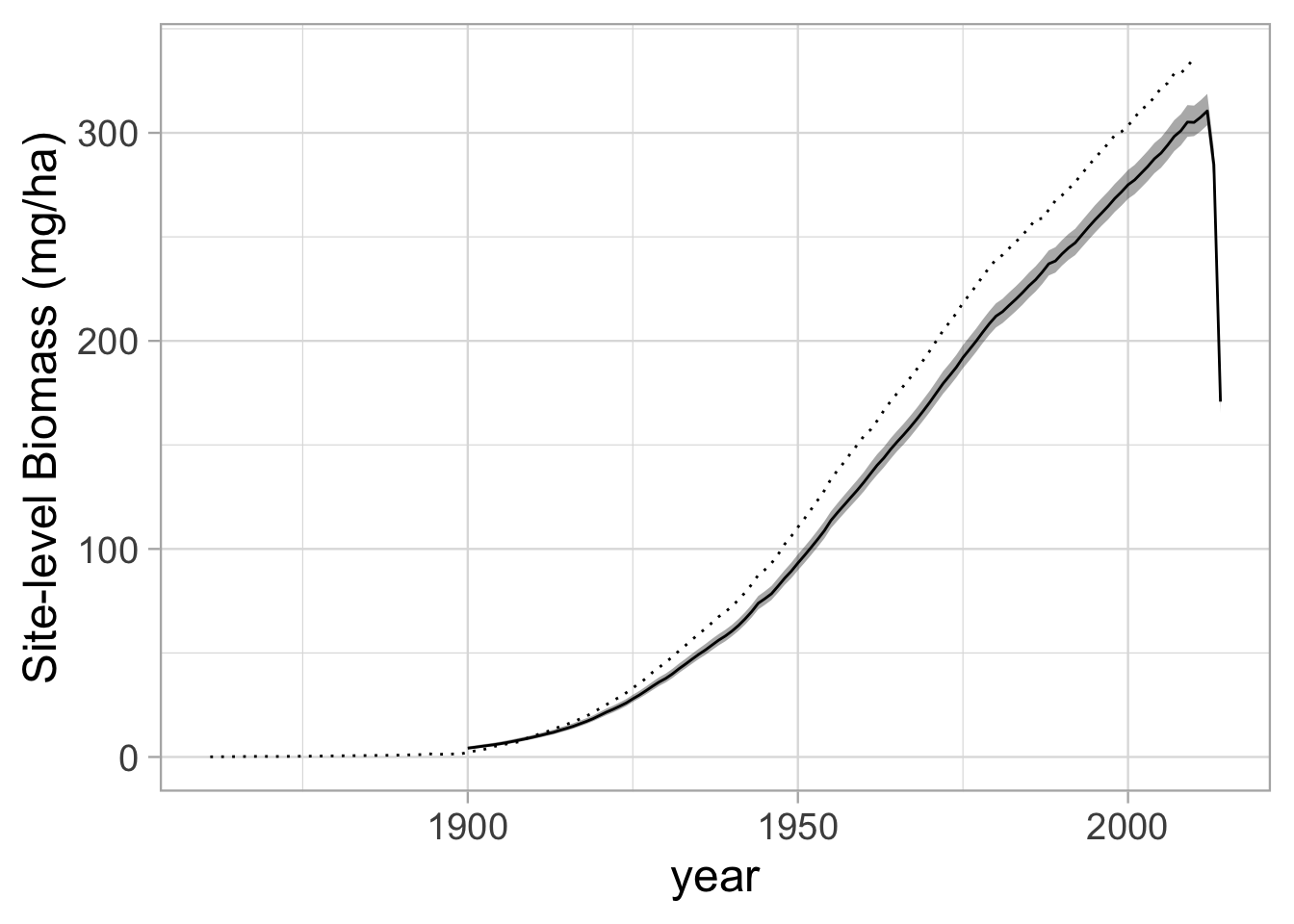

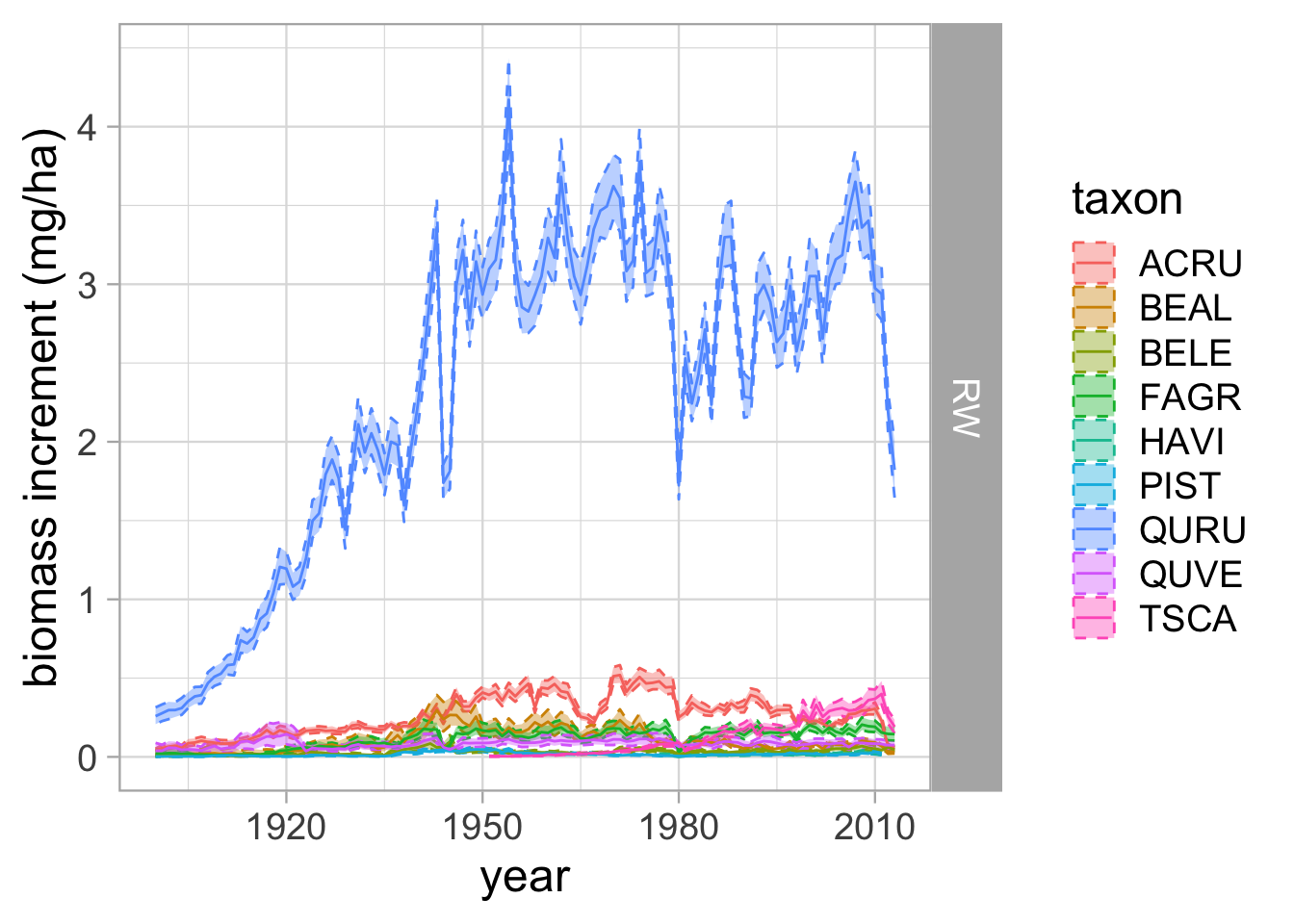

  7. Scaling to stand & Calculating biomass increment from biomass.

1. Inferring growth using the state-space model;

First we will infer tree growth using the state space model introduced in Module 4. We will use Stan to implement the model and estimate the model parameters. Stan which interfaces to R via a package called rstan.

We will also make use of several other packages to organize, summarize, and visualize both the data and model values.

load the packages

Code
library(rstan)
library(dplyr)
library(reshape2)
library(ggplot2)
library(grid)
library(gridExtra)
library(tidyr)

load the model data

The data used to constrain the growth model includes the RW and Census data values. This is the same dataset used in Module 2.

To fit the model using rstan, the dataset needs to be a list of data objects.

Code
# load built dataset
dat = readRDS('data/tree_data_HARVARD.RDS')

class(dat)
[1] "list"
Code
names(dat)
 [1] "N_Xobs"     "N_years"    "N_X"        "N_X_C"      "N_Tr"
 [6] "N_Dobs"     "N_C"        "N_taxa"     "Tr2X"       "Tr2X_C"
[11] "Tr2taxon"   "Tr2taxon_C" "X2C"        "X2Tr"       "X2Tr_C"
[16] "X2year"     "X2year_C"   "X2taxon"    "X2taxon_C"  "idx_C"
[21] "idx_Tr"     "Dobs2X"     "Xobs2X"     "Xobs2X_C"   "logDobs"
[26] "logTr"      "logXobs"    "Dobs"       "Tr"         "Xobs"
[31] "allTrees"   "years"      "taxa"
Code
taxa = dat$taxa # the taxa abbreviations
years = dat$years # the years where we will estimate increments

# STAN requires you to tell it the dimensions of the inputs and outputs, so we need to define these:
N_years = dat$N_years # number of years
N_Tr = dat$N_Tr # number of trees
N_taxa = dat$N_taxa # number of taxa
X2Tr = dat$X2Tr # vector of tree ids
X2year = dat$X2year # vector of years for each tree
Tr = dat$Tr %>% arrange(stat_id) # arrange the Tree data by ids, and save as Tr
taxon = Tr$taxon # vector of taxon ids
plot = Tr$plot # vector of plot ids
years = dat$years # vector of calendar years
year_lo = min(years) # minimum year
year_hi = max(years) # maximum year
pdbh = exp(dat$logTr) #vector of diameters


list2env(dat, envir = globalenv())# load all the data objects into the environment
<environment: R_GlobalEnv>
Code
N_C = dat$N_C # vector of Census ids
X2C = dat$X2C # links the Census tree to the increment measurements
X2year_C = dat$X2year_C

allTrees = dat$allTrees %>% arrange(stat_id)
taxon_C = allTrees$taxon
plot_C = allTrees$plot
distance = allTrees$distance
Note the use of X instead of R for increments

In the last module, the true increment for tree i at time t were refered to as \(\text{R}_{i, t}\), but here we use \(\text{X}_{i, t}\) as using R might be confusing as this is the name of our statistical software and R is not often used as a parameter name

We will also load a previous estimate of the DBH data uncertainty sig_d_obs, and add this to our dataset. This estimate is used as data in the RW-only of the model. We will estimate the DBH data uncertainty in the models that include census measurements.

Code
sig_d_obs = readRDS('data/sig_d_obs_RWC.RDS')
dat$sig_d_obs = sig_d_obs

Stan Model

The stan model code is stored in the models/ folder. The RW only model is the growth_model_RW.stan. If you are working through this tutorial on R, you can view this file in your environment. We won’t dive too deep into how to write your own stan model, but note that this model includes several blocks:

  1. data{}: inputs read in and used as “data” in the model
  2. parameters: defines the parameters that will be estimated in the model (we will draw samples from these in the model block)
  3. transformed parameters: defines the parameters that are calculated from other parameters (we will draw samples from parameters and transform them into quantities we care about in this block)
  4. model: This is where the increment data model, diameter data model and liklihood function are defined
Code
writeLines(readLines("models/growth_model_RW.stan"))
// RW ONLY MODEL
data {
  int<lower=0> N_Tr;            // number of trees with rw measurements
  int<lower=0> N_years;         // number of years of data
  int<lower=0> N_X;             // number of increment values to estimate
  int<lower=0> N_Xobs;          // total number of increments
  int<lower=0> N_taxa;          // total number of taxa
  int<lower=0> Tr2X[N_Tr];      // maps DBH measurements to estimated increment
  int<lower=0> X2Tr[N_X];       // maps estimated increment values to tree ID
  int<lower=0> X2year[N_X];     // maps estimated increment values to year ID
  real logTr[N_Tr];             // log of DBH measurements
  real logXobs[N_Xobs];         // log of increment measurements
  real<lower=0> sig_d_obs;      // mean diameter measurement error
  int<lower=0> idx_Tr[N_Tr, 3]; // indicates first and last value index for each tree ID
  int<lower=0> Xobs2X[N_Xobs];  // maps increment measurements to estimated values

  int<lower=0> X2taxon[N_X];
  //int<lower=0> Tr2taxon[N_Tr];
}

parameters {
  real beta0;
  real beta[N_Tr];
  real<lower=0> beta_sd;
  real<lower=0> beta_t_sd;
  // real<lower=1e-6> sig_x;
  real<lower=1e-6> sig_x[N_taxa];
  real<lower=1e-6> sig_x_obs;
  real<lower=-30, upper=80> D0[N_Tr];
  vector<lower=1e-6> [N_X] X;

  matrix[N_years, N_taxa] beta_t;
}
transformed parameters {
    // process evolution
  vector<lower=-30> [N_X] D;

  for (tree in 1:N_Tr){
    D[idx_Tr[tree,2]] = D0[tree] + 2.0 * X[idx_Tr[tree,2]] / 10.0;
    for (val in (idx_Tr[tree,2]+1):(idx_Tr[tree,3])){
      D[val] = D[val-1] + 2.0 * X[val] / 10.0;
    }
  }
}

model{

  beta0     ~ normal(0, 1.0/0.00001);
  sig_x_obs ~ uniform(1e-6, 2.0);
  //sig_d_obs ~ uniform(1e-6, 1000);

  // sig_x     ~ uniform(1e-6, 1000);
  beta_sd   ~ uniform(1e-6, 1000);
  beta_t_sd ~ uniform(1e-6, 1000);

  for(tree in 1:N_Tr) {
    D0[tree] ~ uniform(-30, 80);
    beta[tree] ~ normal(beta0, beta_sd);
  }

  // for(year in 1:N_years) {
  //   beta_t[year] ~ normal(0, beta_t_sd);
  // }

    // temporal species effect prior
  for(year in 1:N_years) {
    beta_t[year,] ~ normal(0, beta_t_sd);
  }

  for (taxon in 1:N_taxa) {
    sig_x[taxon] ~ uniform(1e-6, 1000);
  }


  // increment likelihood

  // estimates
  for (val in 1:N_X){
    X[val] ~ lognormal(beta[X2Tr[val]] + beta_t[X2year[val], X2taxon[val]], sig_x[X2taxon[val]]);
   }

  // RW estimates against RW increments
  for (inc in 1:N_Xobs){
   logXobs[inc] ~ normal(log(X[Xobs2X[inc]]), sig_x_obs);
  }

  // diameter estimates against diameter measurements
  for (tree in 1:N_Tr){
    if (logTr[tree] == -999){
    } else {
      logTr[tree] ~ student_t(3, log(D[Tr2X[tree]]), sig_d_obs);
    }
  }
}

2. Sampling models in STAN: A (very brief) overview

Running the model: Example for a short run

To estimate growth using the growth model via Stan, we need to compile the model Stan code, and then sample from the parameter posterior distributions. The sampling function requires that we tell it the model we are using, the dataset we are using, the number of iterations, and the number of chains. The compute time for the sampling function can be quite long, depending on the model, data, and sampling algorithm settings (number of iterations and chains).

Code
# settings
iter = 500
nchains = 1

compiled_RW = stan_model(file = paste0('models/growth_model_RW.stan'))

fit_RW = sampling(compiled_RW,
                  data = dat,
                  iter = iter,
                  chains = nchains,
                  verbose=TRUE)

Running the model: model outputs

We will load the output from the fitted model (fitted model object and parameter posterior distributions).

3. Summarizing model fit–Visualizing process and data uncertainty

The model output is a stanfit object. We can use this object to assess model fit, and to extract posterior distribution samples for the model parameters.

The default view for the object is a summary that shows summary statistics for the posterior samples for the model parameters. To access the summary table, you can use summary(fit_RW) There are arguments we can pass to the summary function to look at particular parameters, and specific the quantiles we want (among other things).

Below we look at a summary for the sig_x parameter, which characterizes the process uncertainty for each species, and the sig_x_obs parameter, which characterizes the increment data uncertainty for all of the data.

Code
#fit_RW
length(names(fit_RW)) # there are alot of parameters estimated in this model--each year for every tree has an estimated diameter (D[]), and an estimated increment ("X"), as well as an initial diameter estimate (D0[]).
[1] 33819
Code
#summary(fit_RW)$summary # this will make a summary of the whole model fit, but is not loaded because there are so many parameters. Lets visualize a the taxa-level observation error and population-level observation errors for the increment uncertainty:

summary(fit_RW, pars = c('sig_x', 'sig_x_obs'), probs = c(0.1, 0.9))$summary
                mean      se_mean          sd        10%       90%     n_eff
sig_x[1]  0.20488190 0.0052774625 0.020517124 0.17592308 0.2305686  15.11411
sig_x[2]  0.24361112 0.0004346820 0.003726972 0.23894971 0.2484215  73.51384
sig_x[3]  0.53627250 0.0006165916 0.007418167 0.52692643 0.5451584 144.74316
sig_x[4]  0.62271530 0.0023627334 0.022225488 0.59682482 0.6513141  88.48571
sig_x[5]  0.43875025 0.0021508195 0.018479598 0.41554438 0.4614233  73.82052
sig_x[6]  0.40137895 0.0078049201 0.050608128 0.33777250 0.4730428  42.04396
sig_x[7]  0.36228570 0.0036568839 0.034923499 0.31907824 0.4030384  91.20385
sig_x[8]  0.06669619 0.0094617907 0.023205397 0.04621721 0.1071442   6.01494
sig_x[9]  0.17472524 0.0207195674 0.065658430 0.10860390 0.2671303  10.04199
sig_x_obs 0.33355857 0.0001806953 0.001942860 0.33113140 0.3361441 115.60839
               Rhat
sig_x[1]  1.0348694
sig_x[2]  1.0016063
sig_x[3]  0.9976559
sig_x[4]  0.9974586
sig_x[5]  0.9974667
sig_x[6]  1.0299605
sig_x[7]  0.9963360
sig_x[8]  1.2022020
sig_x[9]  0.9996491
sig_x_obs 1.0010834

Evaluating model convergence–how do we know we have enough iterations sampled?

While not a complete list, we will look at 3 ways of evaluating the stan model fit itself: 1. Effective sample size 2. Rhat 3. Visualizing traceplots

Effective Sample Size

The summary table also includes columns for effective sample size (n_eff) and Rhat. The effective sample size is a statistic used to estimate the number of posterior samples after accounting for autocorrelation. We want this number to be large. There is no definitive rule about the minimum n_eff needed to conclude that you have enough samples to make inference about model parameters, but the generally accepted minimum is 100 or 200 ESS for each parameter. In some cases the effective sample size can be larger than the total number of iterations.

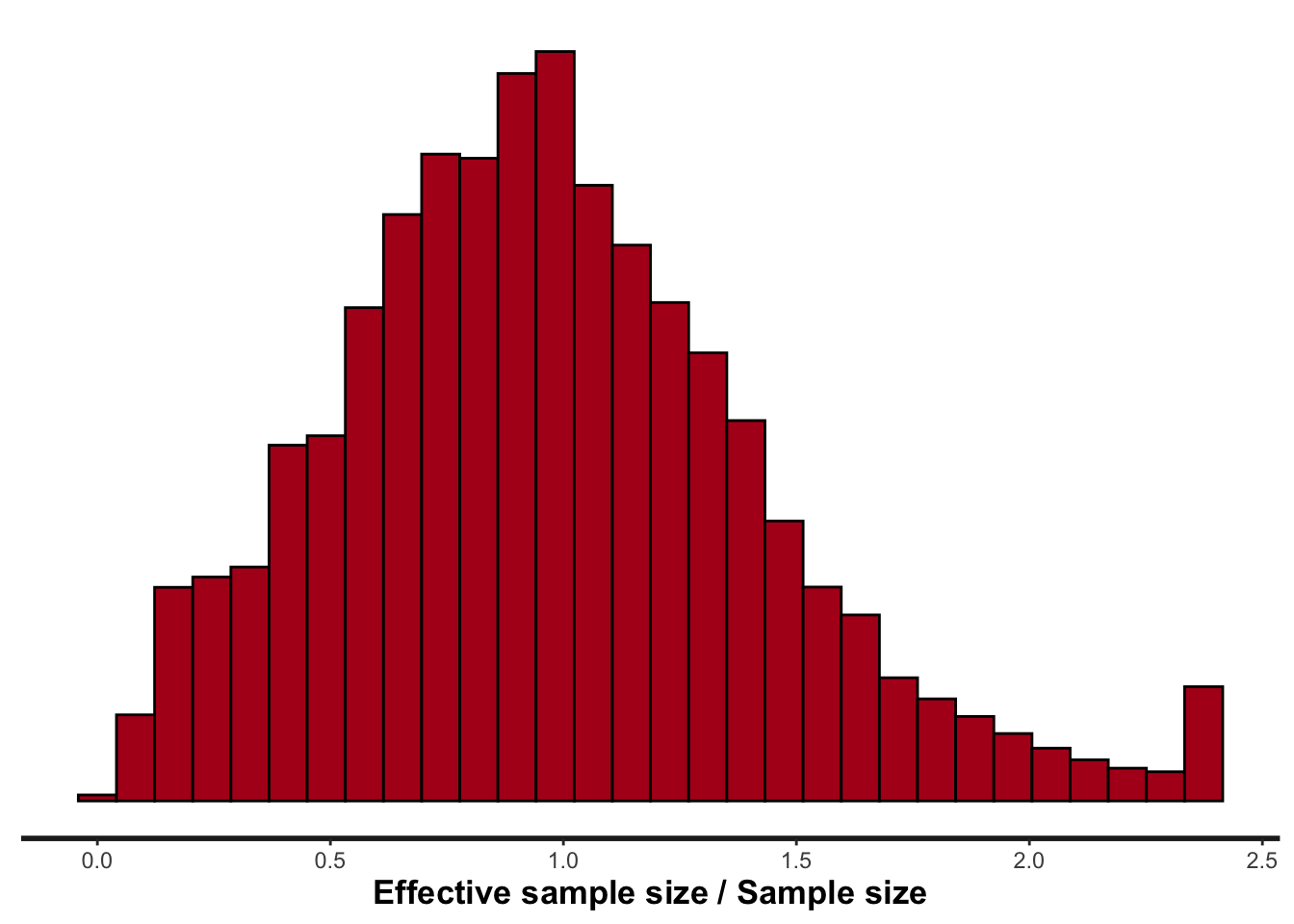

We can use stan_ess to plot a histogram of the ratio of the effective sample size to the total number of iterations. The larger this value the better. Note than it can be larger than 1 because the ESS can be larger than the total number of iterations.

Code
stan_ess(fit_RW)
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

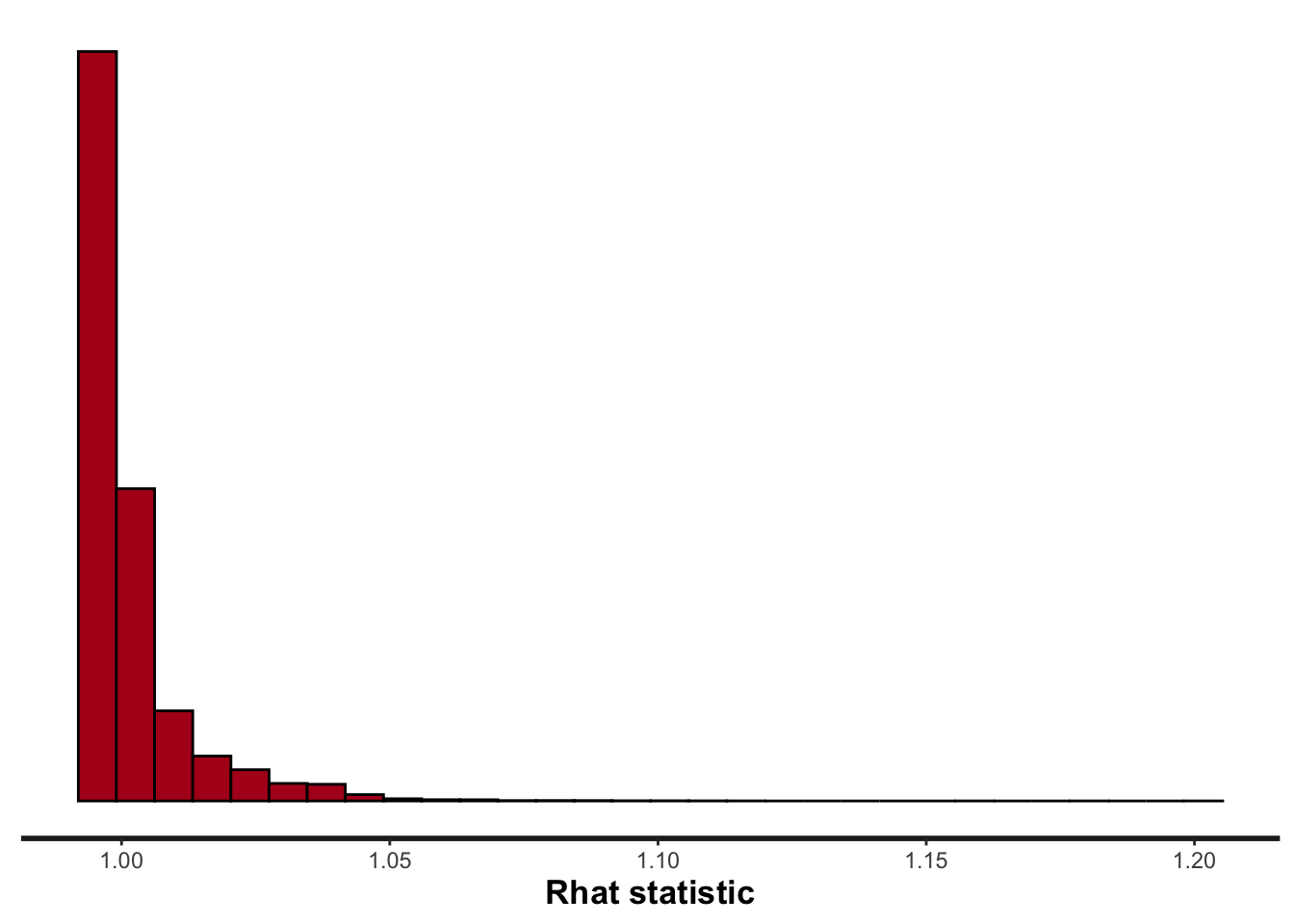

Rhat

Rhat is a statistic that estimates model convergence. It is one way to try to answer the question: has the sampler converged sufficiently so that we are getting samples from the posterior distribution? At convergence, Rhat is equal to 1. Perfect convergence is hard to achieve in practice, so generally we want Rhat smaller than 1.01 (but this is not always possible for all parameters for some complex models).

Code
stan_rhat(fit_RW)
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

Traceplots

Traceplots are useful to visualize if all the different chains are converging on a similar estimate for each value. If you think of an unknown parameter as a prime camping spot (or an old tree that you want to core), that you know is somewhere on a hillside, but not sure where. You might start wandering around randomly until you find the best camping spot. Your friends (who all started at different trailheads) represent different chains (random samplers) are also wandering around the same hillside until they find the best campsite. Hopefully, you all will converge (i.e. meet) at the same general spot on the hillside.

<img src=“DAGs/Convergence.png” width=“800”/>

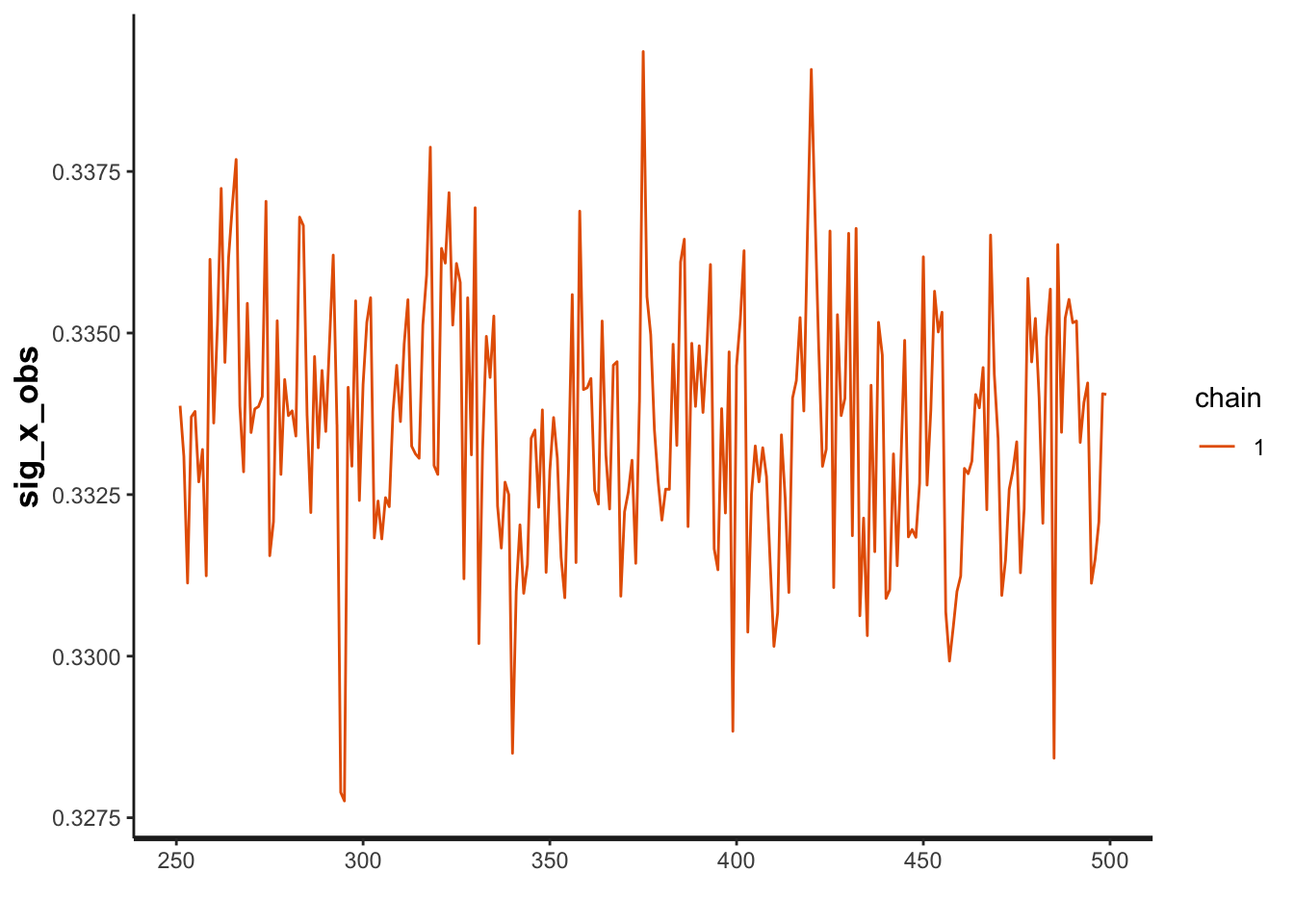

Here we only show one chain, so it may not be as useful, but we can see that this estimate is varying around a mean value (and not slowly trending up/down over the number of samples).

Code
traceplot(fit_RW, pars = c('sig_x_obs'))

3. Visualizing process and data uncertainty

We will want to work with posterior samples for the model parameters, and we can get these by extracting them from the model output object into an easier to work with object. This object is a three dimensional array, which dimensions equal to the number of iterations BY the number of chains BY the number of parameters.

Code
class(post_RW)
[1] "array"
Code
dim(post_RW)
[1]   250     1 33819

histograms of data and process uncertainty

To assess model convergence we also typically look at trace plots of the series of posterior samples for parameters, and plots that summarize the posterior samples.

Here we will consider the species specific process uncertainty parameter, sig_x. Each species has its own process uncertainty parameter. This means that there will be a set of posterior samples for sig_x for each species.

First we summarize the posterior samples for sig_x by species.

Code
# this code is pulling out the model samples for each iteration and aligning the estimated process uncertainties for each taxa:
variables = names(post_RW[1,1,])
allSX = grep('sig_x\\[',variables)

post_sx = post_RW[,,allSX]

dim(post_sx)
[1] 250   9
Code
colnames(post_sx) = taxa
post_sx_melt = melt(post_sx)
colnames(post_sx_melt) = c('iteration', 'species_code', 'sigma_x')
post_sx_melt$model = 'RW'

sig_x_mean = post_sx_melt %>%
  group_by(species_code) %>%
  dplyr::summarize(sig_x_mean = mean(sigma_x))
sig_x_mean = sig_x_mean[order(sig_x_mean$sig_x_mean),]

post_sx_melt$species_code = factor(post_sx_melt$species_code, levels=sig_x_mean$species_code)

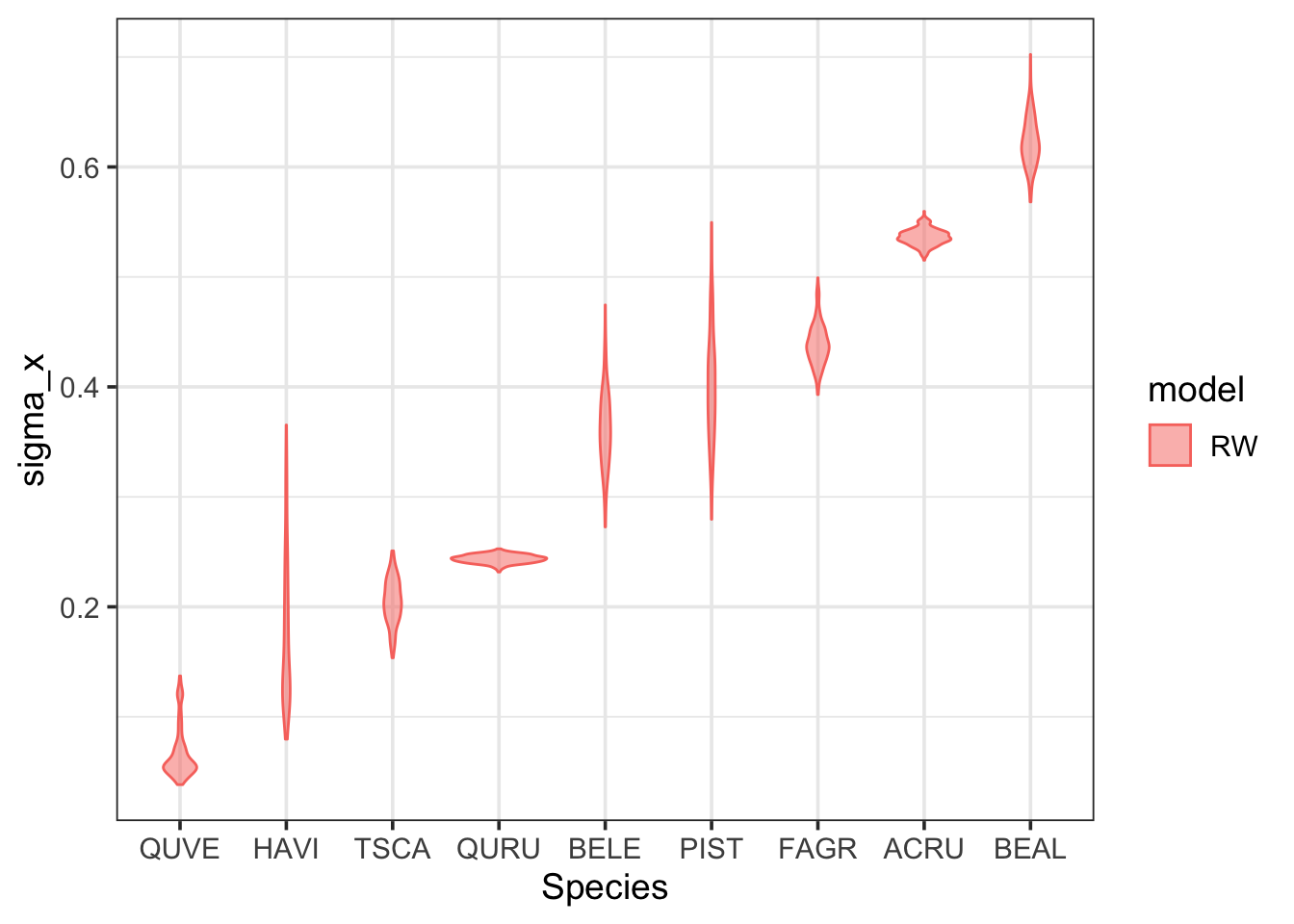

# plot up the species level increment uncertainties
p = ggplot(data=post_sx_melt) +
  # geom_boxplot(aes(x=species_code, y=sigma_x, colour=model, fill=model), alpha=0.5) +
  geom_violin(aes(x=species_code, y=sigma_x, colour=model, fill=model), alpha=0.5) +
  theme_bw(14) +
  xlab('Species') +
  ylab('sigma_x')
print(p)

Code

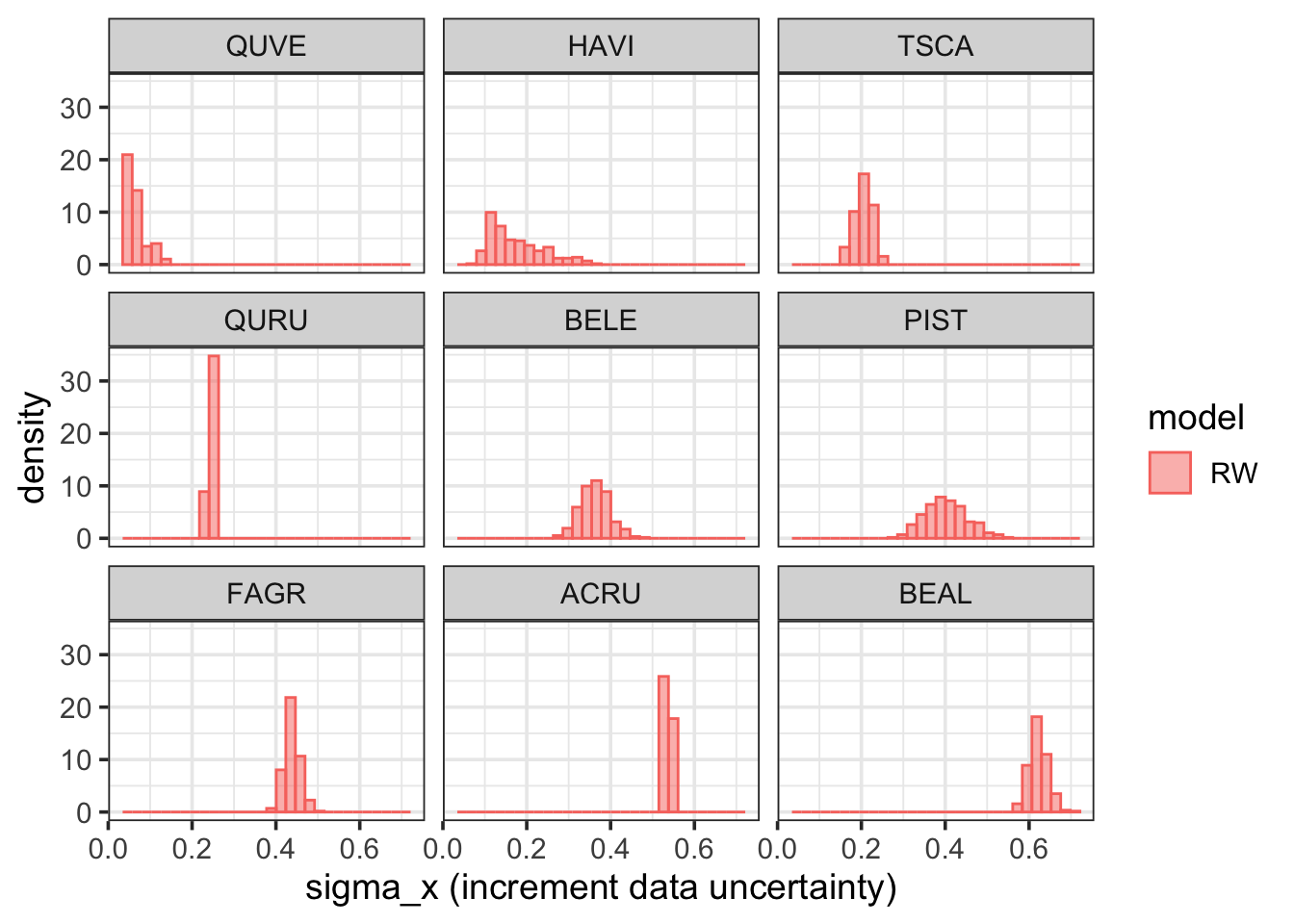

p = ggplot(data=post_sx_melt) +
  geom_histogram(aes(x=sigma_x, , y=after_stat(density), colour=model, fill=model), alpha=0.5) +
  theme_bw(14) +
  xlab('sigma_x (increment data uncertainty)') +
  facet_wrap(~species_code)
print(p)
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

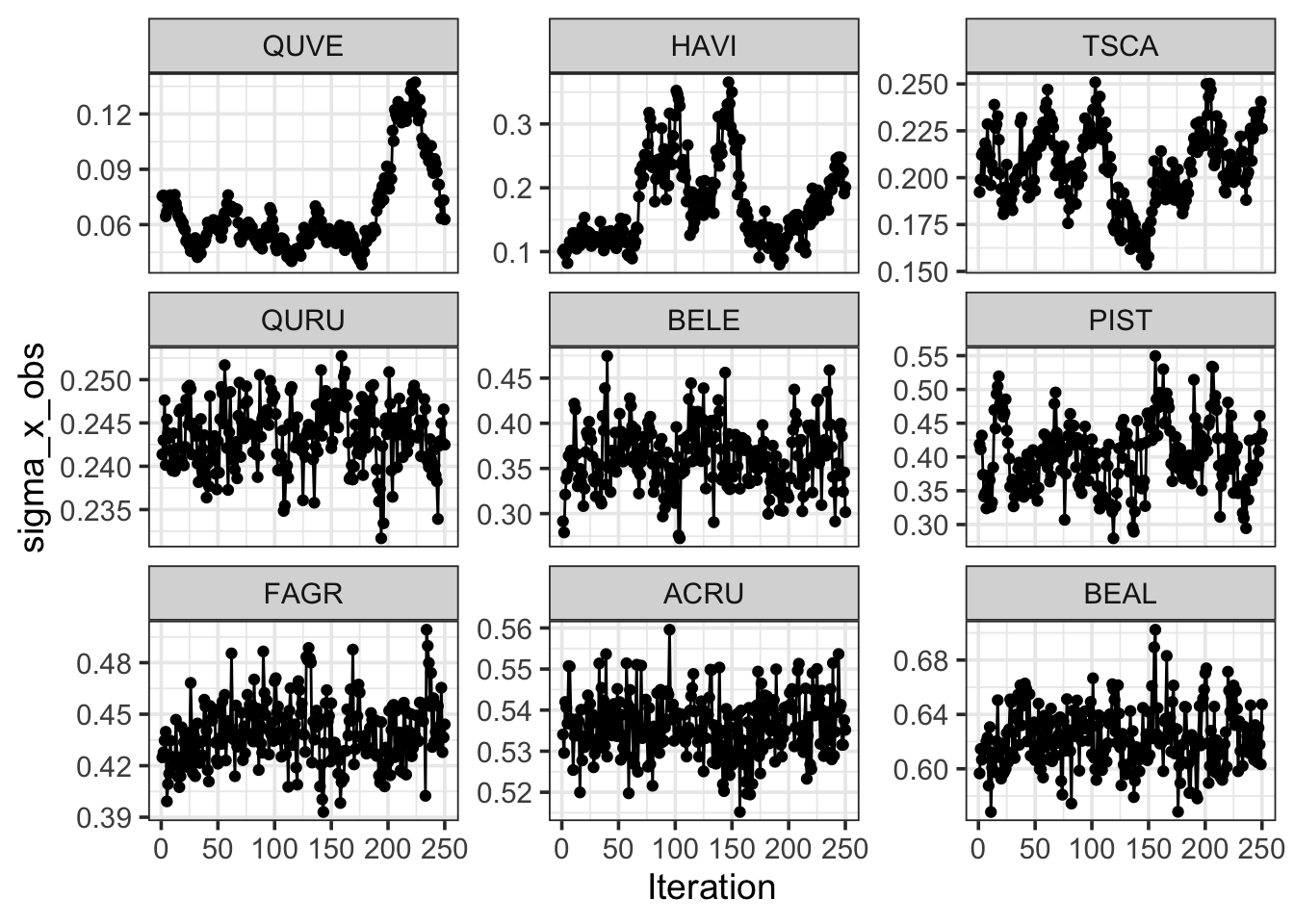

Then we look at the trace plots for the sig_x parameter for each species. Have all of these converged after 500 iterations?

Code
p = ggplot(data=post_sx_melt) +
  geom_line(aes(x=iteration, y=sigma_x)) +
  geom_point(aes(x=iteration, y=sigma_x)) +
  theme_bw(14) +
  xlab('Iteration') +
  ylab('sigma_x_obs') +
  facet_wrap(~species_code, scales='free_y')
print(p)

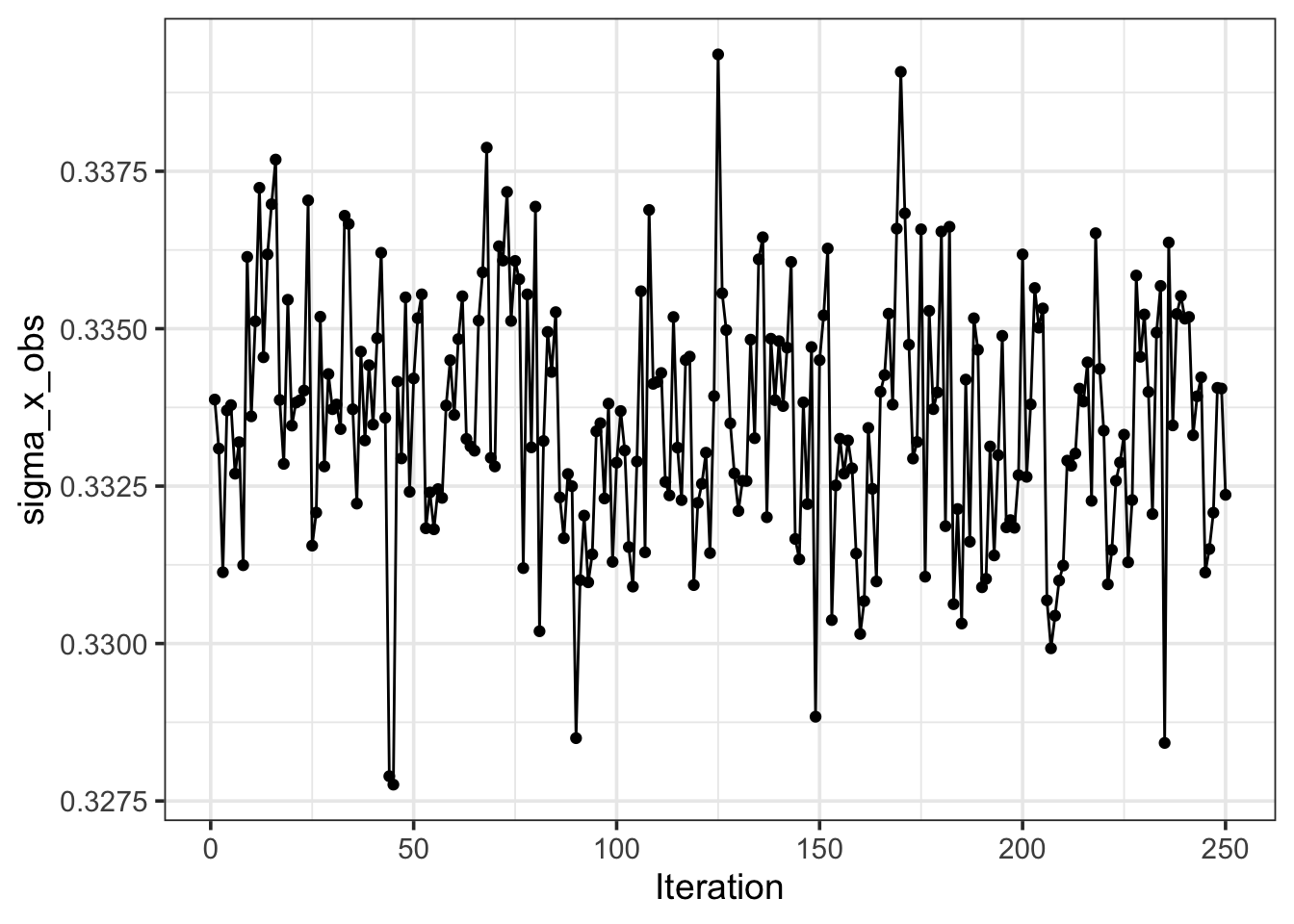

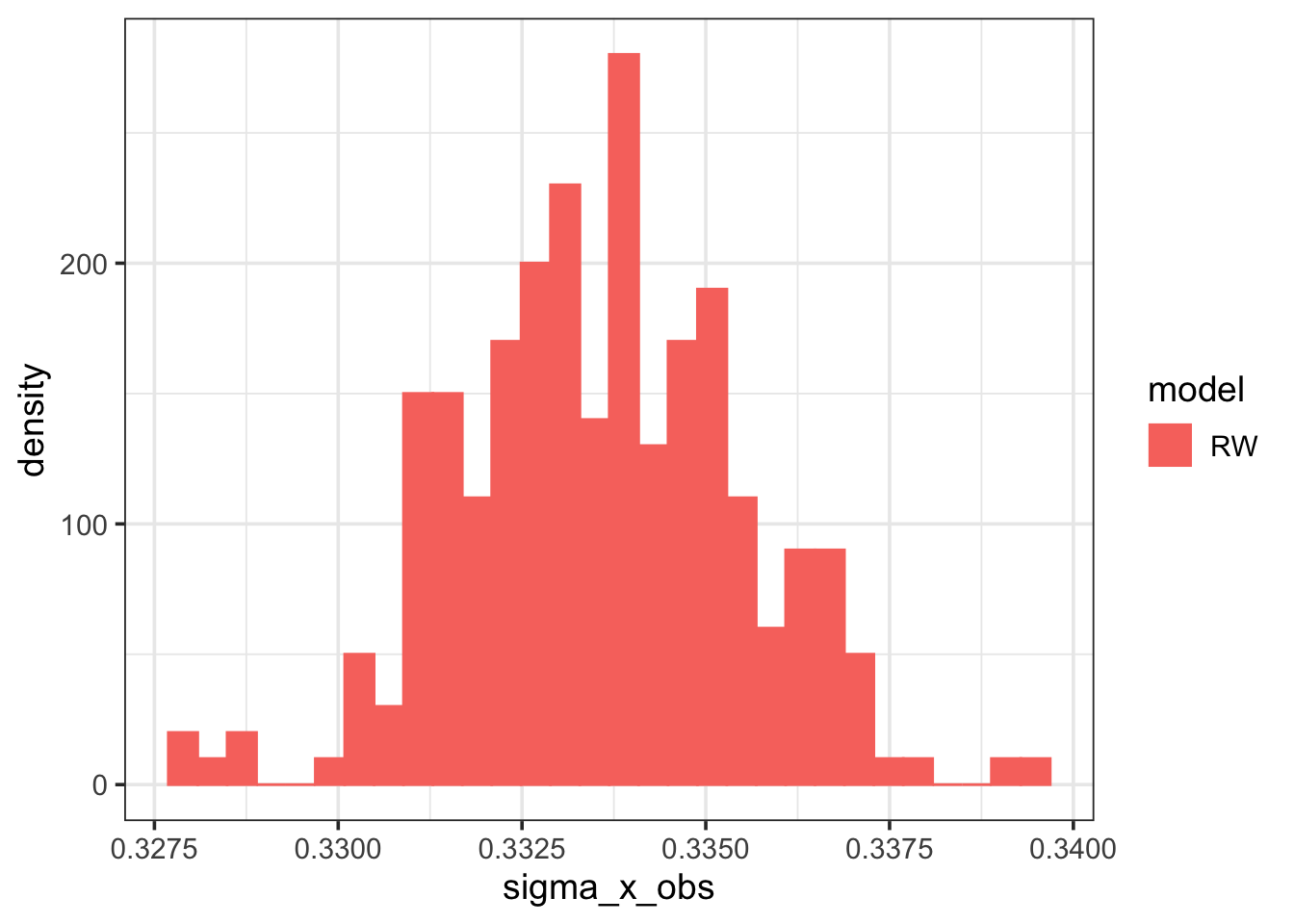

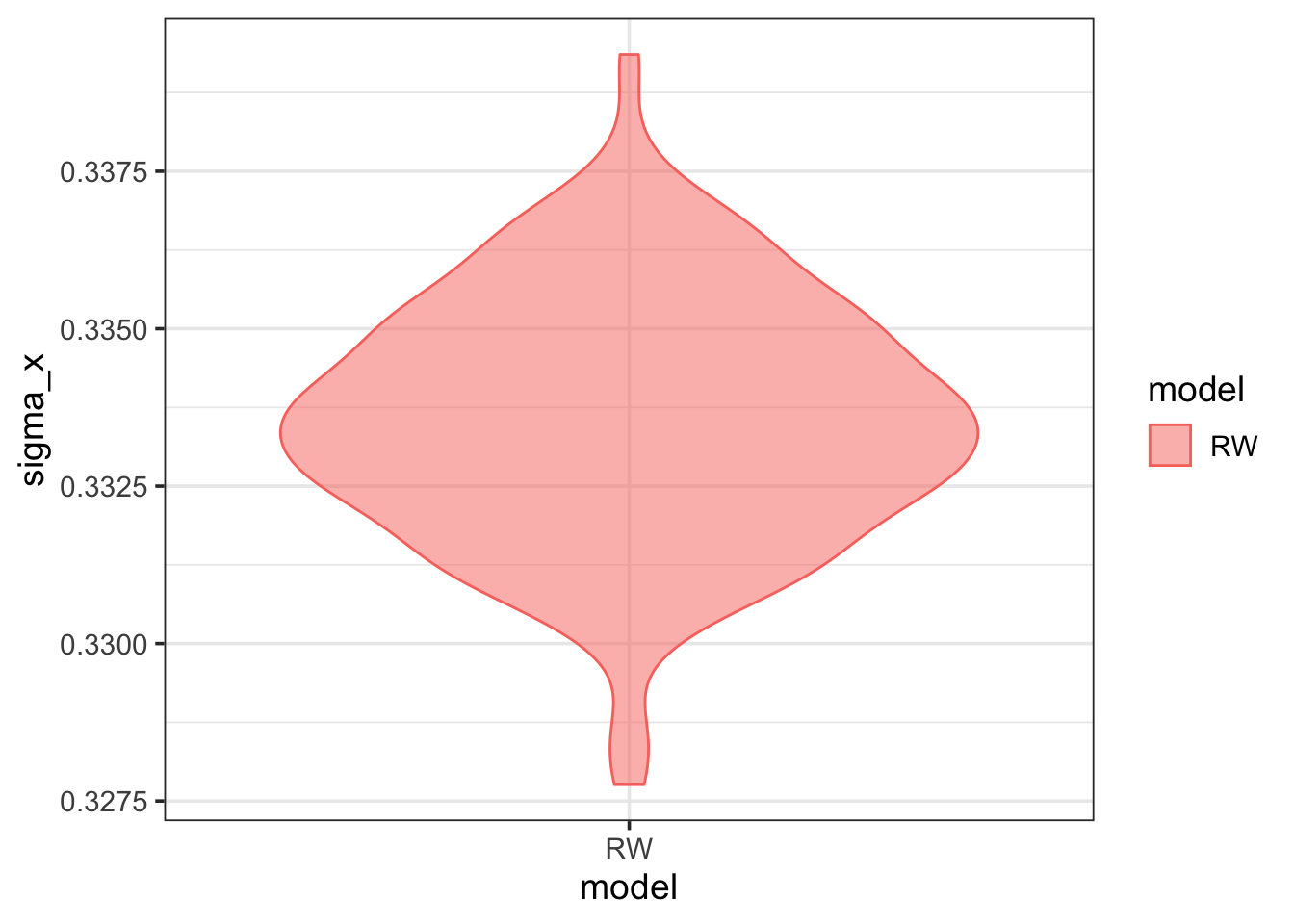

Let’s look a the same types of figures for sig_x_obs, the RW data uncertainty. In this model there is only one parameter for this process uncertainty, common among all species.

Code
variables = names(post_RW[1,1,])
allSXOBS = grep('sig_x_obs',variables)

post_sxobs = post_RW[,,allSXOBS]

# head(post_sx)
# dim(post_sx)

post_sxobs = data.frame(post_sxobs)
post_sxobs$iteration = seq(1, nrow(post_sxobs))
colnames(post_sxobs) = c('sigma_x_obs', 'iteration')
post_sxobs$model = 'RW'

p = ggplot(data=post_sxobs) +
  # geom_boxplot(aes(x=species_code, y=sigma_x, colour=model, fill=model), alpha=0.5) +
  geom_violin(aes(x=model, y=sigma_x_obs, colour=model, fill=model), alpha=0.5) +
  theme_bw(14) +
  #xlab('Species') +
  ylab('sigma_x')
print(p)

Code
p = ggplot(data=post_sxobs) +
  geom_histogram(aes(x=sigma_x_obs, y=after_stat(density), colour=model, fill=model)) +
  theme_bw(14)
print(p)
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

Code
p = ggplot(data=post_sxobs) +
  geom_line(aes(x=iteration, y=sigma_x_obs)) +
  geom_point(aes(x=iteration, y=sigma_x_obs)) +
  theme_bw(14) +
  xlab('Iteration') +
  ylab('sigma_x_obs')
print(p)

4. Visualizing chronology-like effects: year random effects

Here we will also look at some summary figures for the beta_t parameter. For each species, there is a beta_t parameter for each year. This parameter is conceptually the same as a forest chronology; it is a time series that describes the common forest growth signal for a given species.

We could look at summary plots for the posterior samples for a given year for a given species, and do the same for all year BY species combinations. This would be (9 species) x (115 years) = 1035 trace plots, so we don’t look at all of them here.

We do want to visualize the beta_t chronology-like parameters as species-specific time series.

Code
allBTs = grep('beta_t\\[',variables)
post_bt = post_RW[,,allBTs]

post_bt_melt = melt(post_bt)
post_bt_melt$model = 'RW'

bt_pars_split = strsplit(as.vector(post_bt_melt$parameters), '\\[|\\,|\\]')

post_bt_melt$species_code = taxa[sapply(bt_pars_split, function(x) as.numeric(x[[3]]))]
post_bt_melt$year = years[sapply(bt_pars_split, function(x) as.numeric(x[[2]]))]
colnames(post_bt_melt) = c('iteration', 'parameter', 'beta_t', 'model', 'species_code', 'year')

beta_t_quant = post_bt_melt %>%
  group_by(model, species_code, year) %>%
  dplyr::summarize(beta_t_lo = quantile(beta_t, 0.025),
                   beta_t_mid = quantile(beta_t, 0.5),
                   beta_t_hi = quantile(beta_t, 0.975),
                   beta_t_mean = mean(beta_t),
                   .groups = 'keep')

p = ggplot(data=beta_t_quant) +
  geom_hline(aes(yintercept=0), lty=2, lwd=1.2) +
  geom_point(aes(x=year, y=beta_t_mid)) +
  geom_linerange(aes(x=year, ymin=beta_t_lo, ymax=beta_t_hi)) +
  xlab('year') +
  ylab('beta_t') +
  # xlim(c(year_lo, year_hi)) +
  theme_bw(16) +
  facet_grid(species_code~.)
print(p)

5. Using inferred growth to determine tree-level biomass

RW-only model estimated Tree Daimaeter and Growth plots (for some trees)

For the purpose of this workflow, we are most interested in the model inferred tree growth. For each tree, we have parameter estimates that describe increment and diameter growth through for each year.

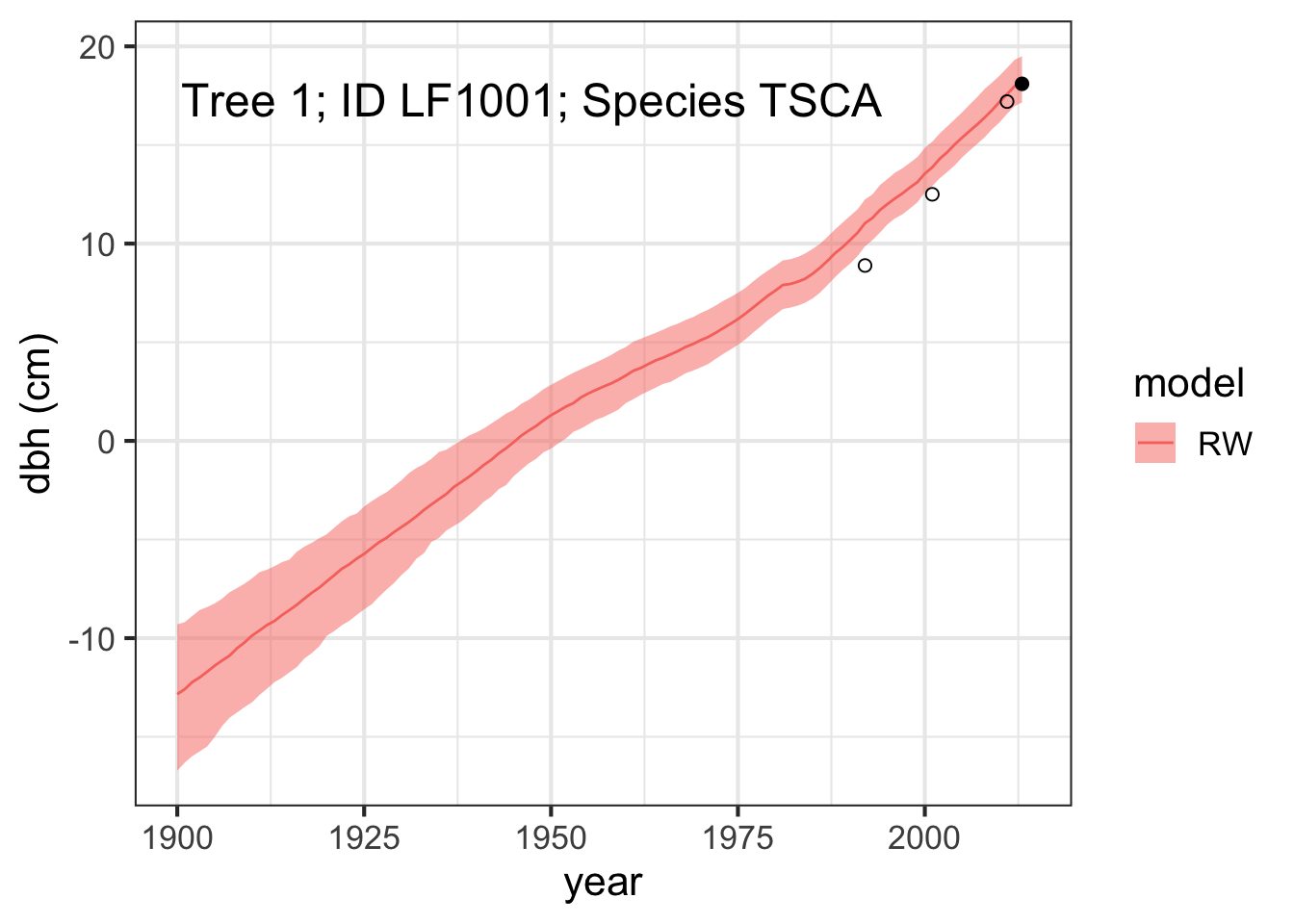

Here we visualize inferred and observed diameter data for one tree (Tree 1). Filled circles indicate the diameter measurement included in this model and hollow circles are census diameter measurements not included in the model.

Code
allDs = grep('D\\[',variables)
post_d = post_RW[,,allDs]

tree = 1

in.RW = tree %in% X2Tr

if (in.RW){
  inds = which(X2Tr == tree)
  yrinds = X2year[inds]

  dbh_iter = t(post_d[,inds])
  dbh_iter = data.frame(dbh_iter)
  dbh_iter = data.frame(year=years[yrinds], dbh_iter)

  dbh_mean = apply(dbh_iter[,2:ncol(dbh_iter)], 1, mean, na.rm=TRUE)
  dbh_quant = t(apply(dbh_iter[,2:ncol(dbh_iter)], 1,
                      function(x) quantile(x, c(0.025, 0.5, 0.975), na.rm=TRUE)))

  dbh_tree = data.frame(d_mean = dbh_mean,
                        d_median = dbh_quant[,2],
                        d_lo = dbh_quant[,1],
                        d_hi = dbh_quant[,3],
                        year = years[yrinds],
                        model = 'RW')

}

# determine which estimates correspond to this tree
inds_C = which(X2Tr_C == tree)
yrinds_C = X2year_C[inds_C]


idx_d_obs_C = which(Dobs$stat_id == tree)

dbh_obs_C = data.frame(d_obs = Dobs$dbh[idx_d_obs_C],
                       year = years[Dobs$year[idx_d_obs_C]])

stem_id = Dobs$ID[idx_d_obs_C][1]

if (in.RW){
  idx_d_obs = which(Tr$stat_id == tree)

  dbh_obs = data.frame(d_obs = Tr$dbh[idx_d_obs],
                       year = years[Tr$year[idx_d_obs]])

} else {
  dbh_obs = data.frame(d_obs = numeric(0),
                       year = numeric(0))
}

# Create a text
grob = grobTree(textGrob(paste0('Tree ', tree, '; ID ', stem_id, '; Species ', taxon[tree] ), x=0.05,  y=0.9, hjust=0,
                         gp=gpar(col="black", fontsize=18)))

p1 = ggplot() +
  geom_ribbon(data=dbh_tree, aes(x=year, ymin=d_lo, ymax=d_hi, fill=model), alpha=0.5) +
  geom_line(data=dbh_tree, aes(x=year, y=d_median, colour=model)) +
  geom_point(data=dbh_obs, aes(x=year, y=d_obs), size=2) +
  geom_point(data=dbh_obs_C, aes(x=year, y=d_obs), size=2, shape=1) +
  xlab('year') +
  ylab('dbh (cm)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)  +
  annotation_custom(grob)

print(p1)

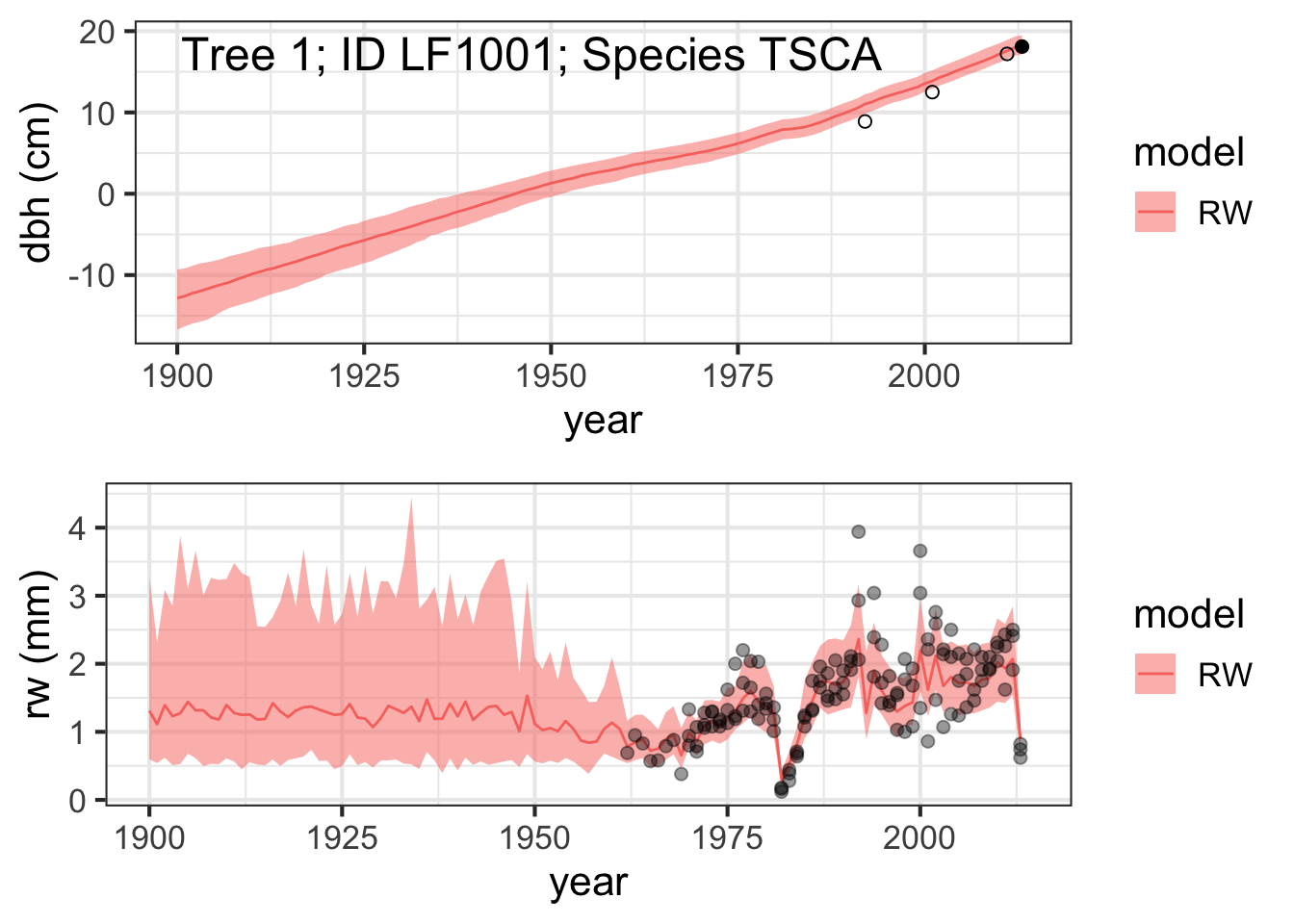

We also visualize inferred and observed increment for this tree (Tree 1).

Code
allRWs = grep('X\\[',variables)
post_rw = post_RW[,,allRWs]

if (in.RW){
  inds = which(X2Tr == tree)
  yrinds = X2year[inds]

  rw_iter = t(post_rw[,inds])
  rw_iter = data.frame(rw_iter)
  rw_iter = data.frame(year=years[yrinds], rw_iter)

  rw_mean = apply(rw_iter[,2:ncol(rw_iter)], 1, mean, na.rm=TRUE)
  rw_quant = t(apply(rw_iter[,2:ncol(rw_iter)], 1,
                     function(x) quantile(x, c(0.025, 0.5, 0.975), na.rm=TRUE)))

  rw_tree = data.frame(x_mean = rw_mean,
                       x_median = rw_quant[,2],
                       x_lo = rw_quant[,1],
                       x_hi = rw_quant[,3],
                       year = years[yrinds],
                       model = 'RW')
}


inds_C = which(X2Tr_C == tree)
yrinds_C = X2year_C[inds_C]

if (in.RW){
  idx_rw_obs = which(Xobs$stat_id == tree)

  rw_obs = data.frame(x_obs = Xobs$incr[idx_rw_obs],
                      year = years[Xobs$year[idx_rw_obs]])
} else {
  rw_obs = data.frame(x_obs = numeric(0),
                      year = numeric(0))
}

# # Create a text
# grob <- grobTree(textGrob(paste0('Tree ', tree, '; Stem ID ', stem_id, '; Species ', taxon[tree] ), x=0.05,  y=0.9, hjust=0,
#                           gp=gpar(col="black", fontsize=22)))

p2 = ggplot() +
  geom_ribbon(data=rw_tree, aes(x=year, ymin=x_lo, ymax=x_hi, fill=model), alpha=0.5) +
  geom_line(data=rw_tree, aes(x=year, y=x_median, colour=model)) +
  geom_point(data=rw_obs, aes(x=year, y=x_obs), size=2, alpha=0.4) +
  xlab('year') +
  ylab('rw (mm)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)  #+

grid.arrange(p1, p2, nrow = 2)

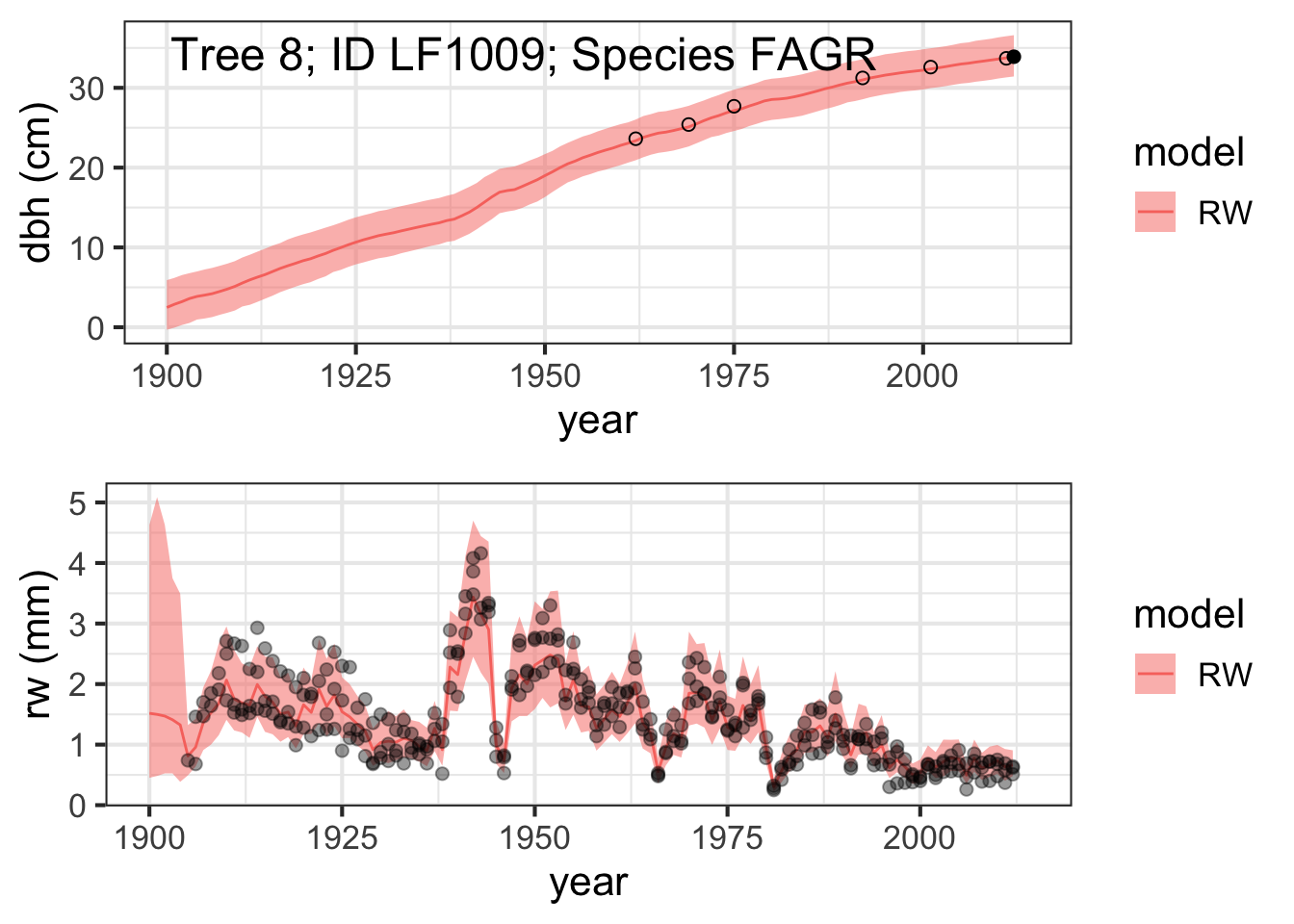

Let’s visualize the inferred and observed growth for another tree as well.

Code
tree = 8

in.RW = tree %in% X2Tr

if (in.RW){
  inds = which(X2Tr == tree)
  yrinds = X2year[inds]

  dbh_iter = t(post_d[,inds])
  dbh_iter = data.frame(dbh_iter)
  dbh_iter = data.frame(year=years[yrinds], dbh_iter)

  dbh_mean = apply(dbh_iter[,2:ncol(dbh_iter)], 1, mean, na.rm=TRUE)
  dbh_quant = t(apply(dbh_iter[,2:ncol(dbh_iter)], 1,
                      function(x) quantile(x, c(0.025, 0.5, 0.975), na.rm=TRUE)))

  dbh_tree = data.frame(d_mean = dbh_mean,
                        d_median = dbh_quant[,2],
                        d_lo = dbh_quant[,1],
                        d_hi = dbh_quant[,3],
                        year = years[yrinds],
                        model = 'RW')

}

# determine which estimates correspond to this tree
inds_C = which(X2Tr_C == tree)
yrinds_C = X2year_C[inds_C]


idx_d_obs_C = which(Dobs$stat_id == tree)

dbh_obs_C = data.frame(d_obs = Dobs$dbh[idx_d_obs_C],
                       year = years[Dobs$year[idx_d_obs_C]])

stem_id = Dobs$ID[idx_d_obs_C][1]

if (in.RW){
  idx_d_obs = which(Tr$stat_id == tree)

  dbh_obs = data.frame(d_obs = Tr$dbh[idx_d_obs],
                       year = years[Tr$year[idx_d_obs]])

} else {
  dbh_obs = data.frame(d_obs = numeric(0),
                       year = numeric(0))
}

# Create a text
grob = grobTree(textGrob(paste0('Tree ', tree, '; ID ', stem_id, '; Species ', taxon[tree] ), x=0.05,  y=0.9, hjust=0,
                         gp=gpar(col="black", fontsize=18)))

p1 = ggplot() +
  geom_ribbon(data=dbh_tree, aes(x=year, ymin=d_lo, ymax=d_hi, fill=model), alpha=0.5) +
  geom_line(data=dbh_tree, aes(x=year, y=d_median, colour=model)) +
  geom_point(data=dbh_obs, aes(x=year, y=d_obs), size=2) +
  geom_point(data=dbh_obs_C, aes(x=year, y=d_obs), size=2, shape=1) +
  xlab('year') +
  ylab('dbh (cm)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)  +
  annotation_custom(grob)

#print(p1)

if (in.RW){
  inds = which(X2Tr == tree)
  yrinds = X2year[inds]

  rw_iter = t(post_rw[,inds])
  rw_iter = data.frame(rw_iter)
  rw_iter = data.frame(year=years[yrinds], rw_iter)

  rw_mean = apply(rw_iter[,2:ncol(rw_iter)], 1, mean, na.rm=TRUE)
  rw_quant = t(apply(rw_iter[,2:ncol(rw_iter)], 1,
                     function(x) quantile(x, c(0.025, 0.5, 0.975), na.rm=TRUE)))

  rw_tree = data.frame(x_mean = rw_mean,
                       x_median = rw_quant[,2],
                       x_lo = rw_quant[,1],
                       x_hi = rw_quant[,3],
                       year = years[yrinds],
                       model = 'RW')
}


inds_C = which(X2Tr_C == tree)
yrinds_C = X2year_C[inds_C]

if (in.RW){
  idx_rw_obs = which(Xobs$stat_id == tree)

  rw_obs = data.frame(x_obs = Xobs$incr[idx_rw_obs],
                      year = years[Xobs$year[idx_rw_obs]])
} else {
  rw_obs = data.frame(x_obs = numeric(0),
                      year = numeric(0))
}

p2 = ggplot() +
  geom_ribbon(data=rw_tree, aes(x=year, ymin=x_lo, ymax=x_hi, fill=model), alpha=0.5) +
  geom_line(data=rw_tree, aes(x=year, y=x_median, colour=model)) +
  geom_point(data=rw_obs, aes(x=year, y=x_obs), size=2, alpha=0.4) +
  xlab('year') +
  ylab('rw (mm)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)  #+

grid.arrange(p1, p2, nrow = 2)

Data vs model

We have looked at diagnostics of the model sampling step, but it is a good idea to do some additional model validation. This typically involved comparing model and data values. Here we will visualize model inferred versus observed diamater and increment.

The modelled and observed diameter and increment values have already been organized into data frames. We will load them in order to visualize the information.

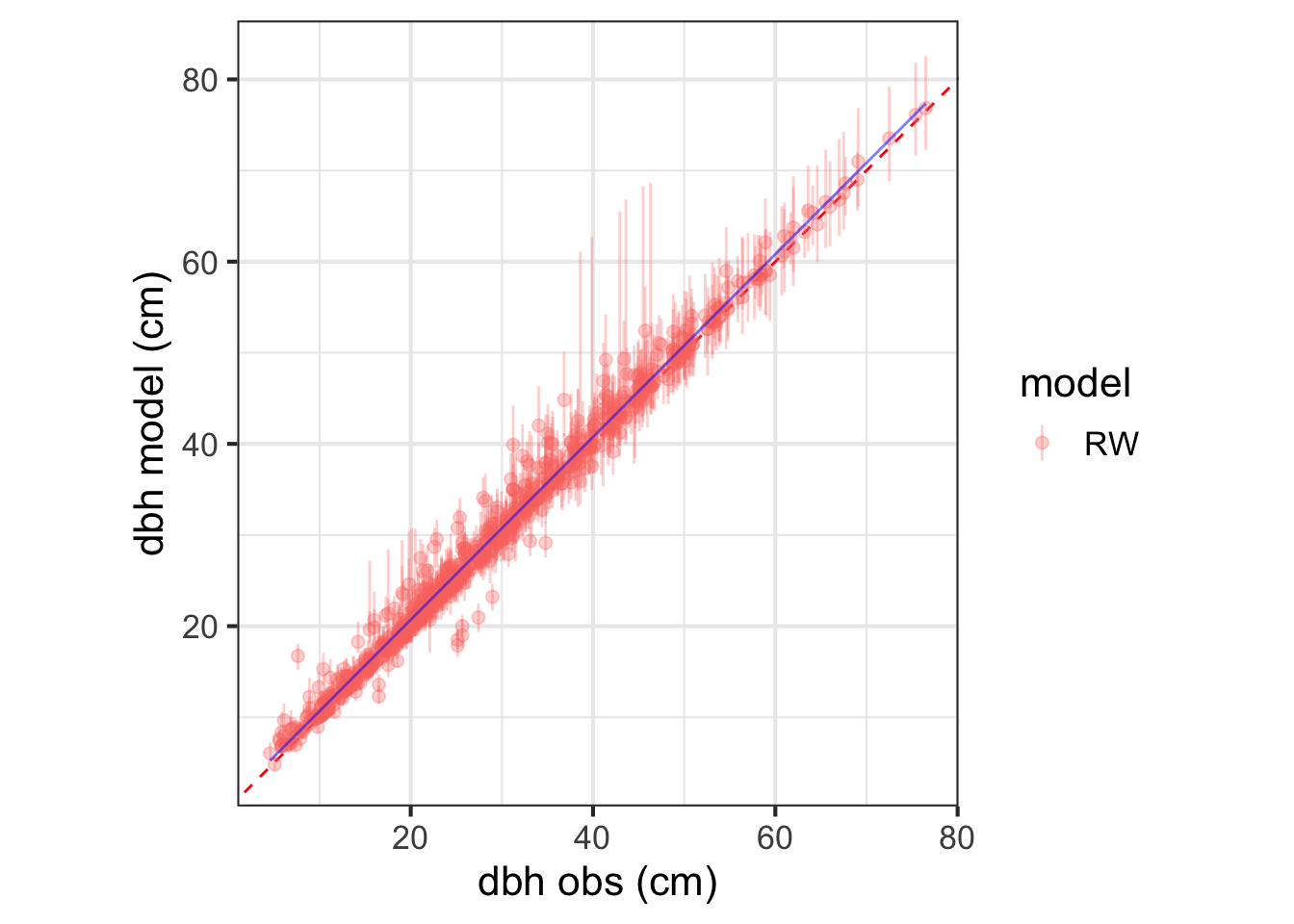

First we will look at the model versus data diameter scatter plot.

Code
# comparing estimates of diameter increment to observation
dbh_validate = readRDS('output/DBH_VALIDATE_HARVARD.RDS')
dbh_validate = subset(dbh_validate, model == 'RW')

p = ggplot(data=dbh_validate) +
  geom_abline(intercept=0, slope=1, lty=2, colour='red') +
  geom_linerange(aes(x=d_obs, ymin=d_model_lo, ymax=d_model_hi, colour=model), alpha=0.3) +
  geom_point(aes(x=d_obs, y=d_model_median, colour=model), size=2, alpha=0.3) +
  geom_line(stat='smooth', method='lm', formula = y ~ x, aes(x=d_obs, y=d_model_median), colour = 'blue', alpha=0.5, fullrange=TRUE) +
  xlab('dbh obs (cm)') +
  ylab('dbh model (cm)') +
  theme_bw(16) +
  coord_fixed()
print(p)

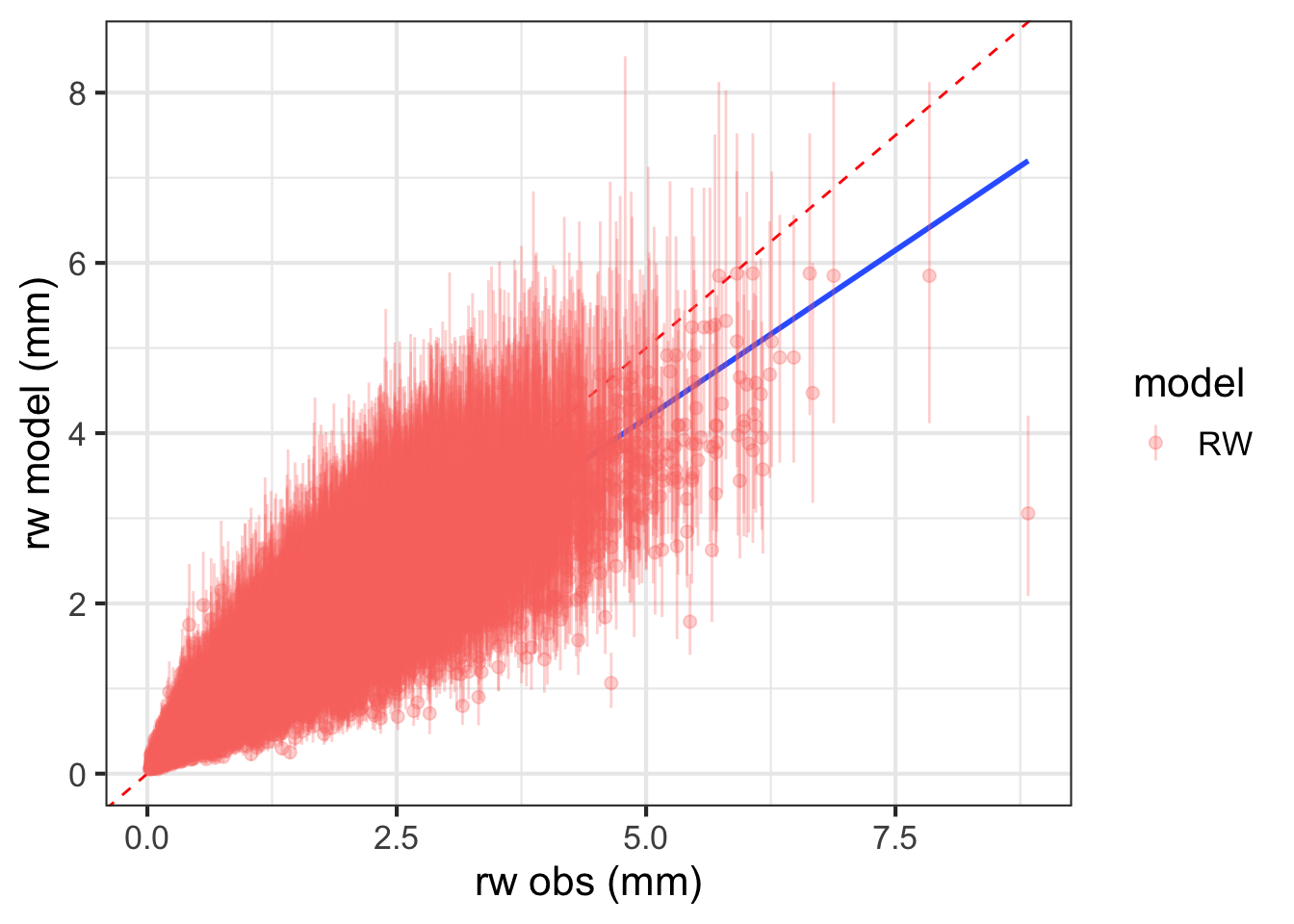

Now we visualize the model versus data diameter using a scatter plot. The Blue line is the best-fit line through the median predictions vs. observations. Do you think this model is under or over estimating increment data?

Code
rw_validate = readRDS('output/RW_VALIDATE_HARVARD.RDS')
rw_validate = subset(rw_validate, model == 'RW')

q = ggplot(data=rw_validate) +
  geom_abline(intercept=0, slope=1, lty=2, colour='red') +
  geom_smooth(method='lm', aes(x=rw_obs, y=rw_model_median), fullrange=TRUE) +
  geom_linerange(aes(x=rw_obs, ymin=rw_model_lo, ymax=rw_model_hi, colour=model), alpha=0.3) +
  geom_point(aes(x=rw_obs, y=rw_model_median, colour=model), size=2, alpha=0.3) +
  xlab('rw obs (mm)') +
  ylab('rw model (mm)') +
  theme_bw(16)
print(q)
`geom_smooth()` using formula = 'y ~ x'

2. Growth to Biomass

We will use the model inferred tree growth to determine tree biomass. This is done using allometric equations, which are used to determine tree biomass based on tree size. In this workflow, we will use the allometric equations from Chojnacky et al. (XXXX). For each species, tree biomass is determined by tree diameter using the equation AGB = exp(beta0 + beta1 * log(DBH)), where beta0 and beta1 are published parameter values (estimated using destructive sampling that involves cutting down and weighing trees).

Code
# code to estimate biomass
choj = read.csv('data/acronym_to_chojnacky_v0.1.csv', stringsAsFactors = FALSE)

# use HAVI (average of all hardwoods) for those species not found in chojnacky equations
gen = choj[which(choj$acronym == 'HAVI'),]
choj = choj %>% filter(acronym %in% unique(taxon_C))

head(choj)
  acronym          common.name          chojnacky.class   beta0  beta1
1    ACRU            red maple     Aceraceae < 0.50 spg -2.0470 2.3852
2    HAVI                      average of all hardwoods -2.2424 2.4498
3    BELE          sweet birch   Betulaceae >= 0.60 spg -2.2652 2.5349
4    BEAL         yellow birch Betulaceae 0.50-0.59 spg -1.8096 2.3480
5    FAGR       american beech      Fagaceae; deciduous -2.0705 2.4410
6    QURU northern red oak\xca      Fagaceae; deciduous -2.0705 2.4410

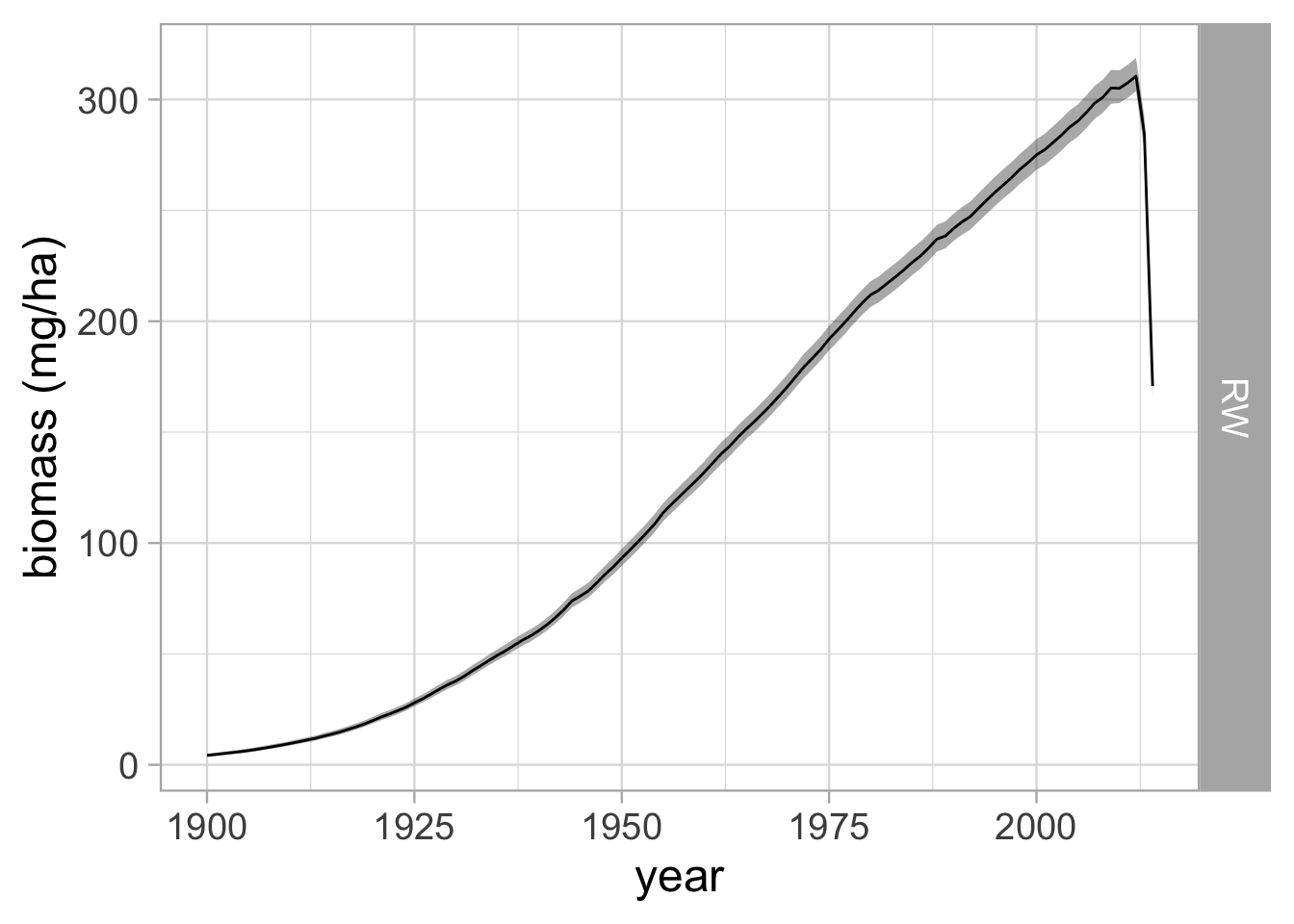

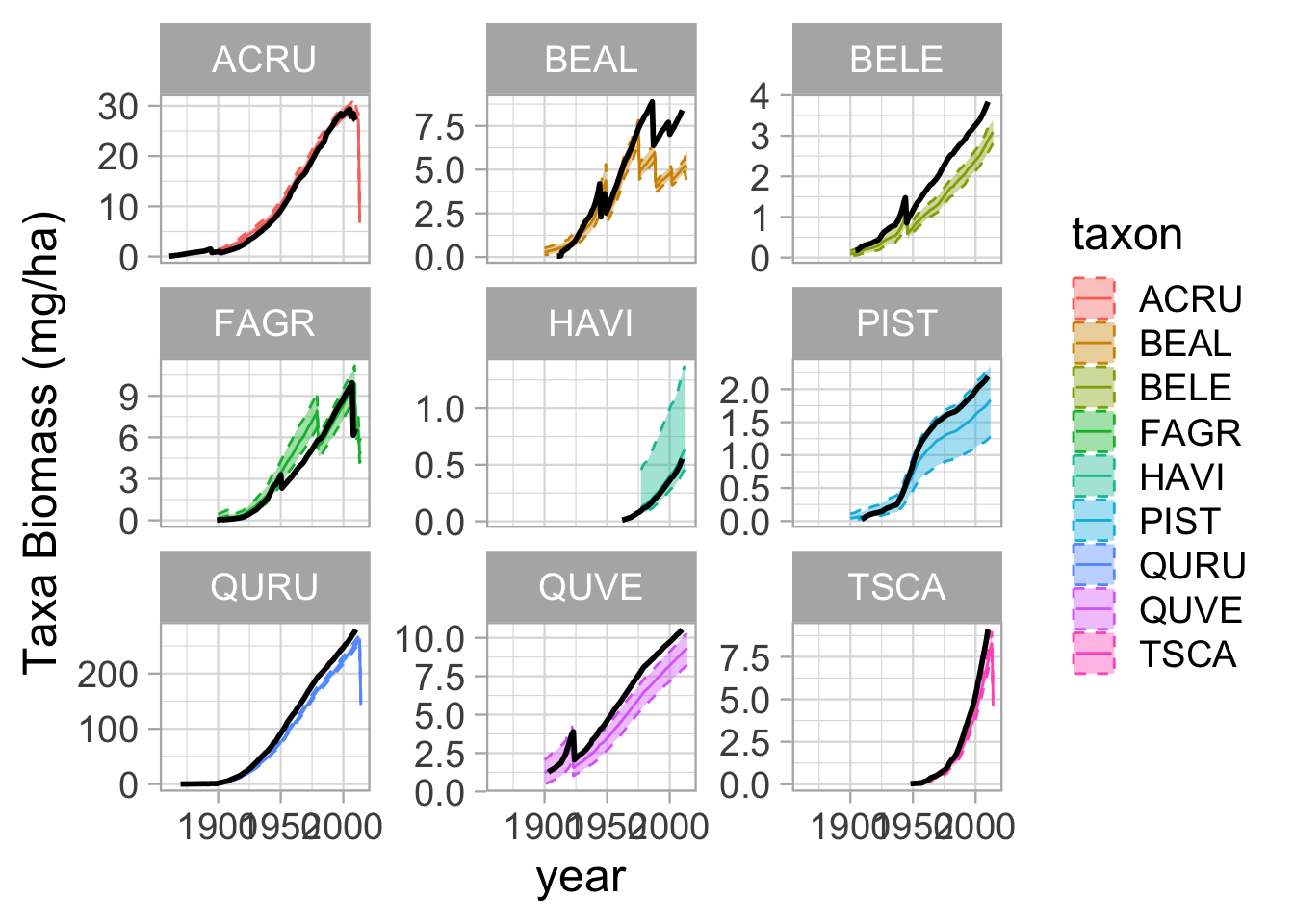

For each tree, for each year, and for each posterior diameter sample we determine tree biomass. We also regorganize the model inferred diameter so that both the diameter and biomass objects have the same structure.

We also reorganize the data to facilitate visualization.

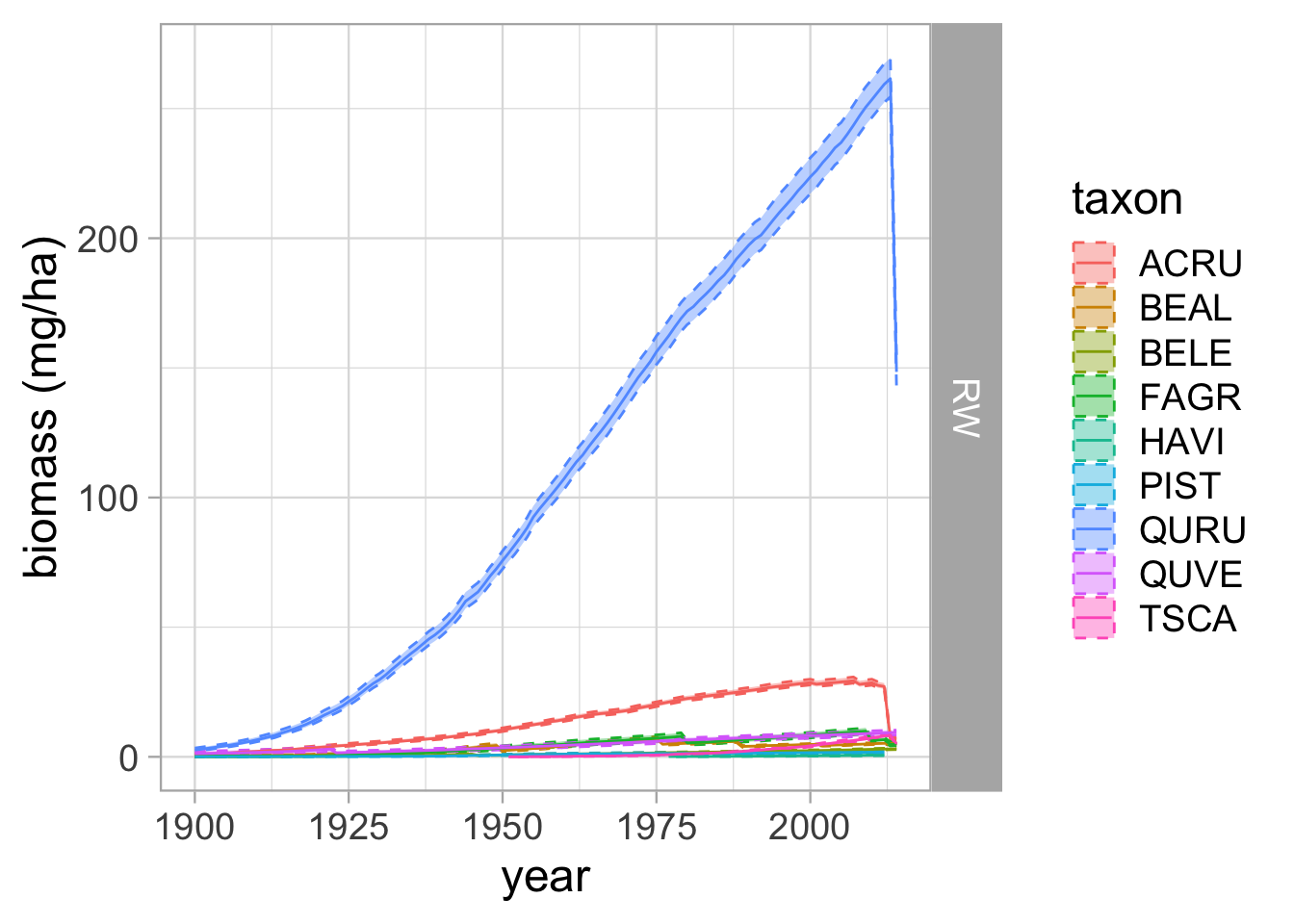

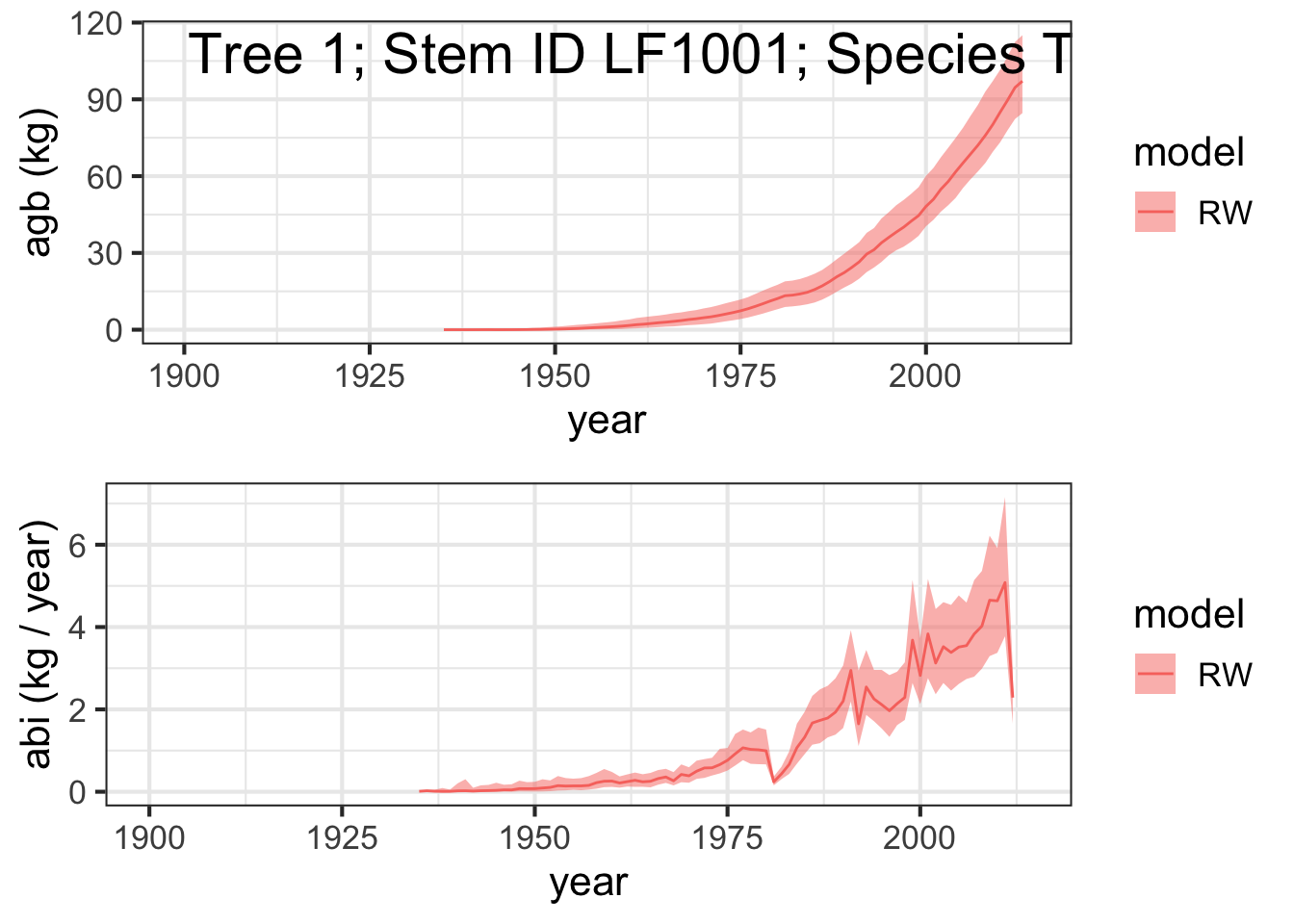

Now we visualize biomass for a single tree through time.

Code
tree = 1

agb_tree = agb_melt[which(agb_melt$tree == tree),]
agb_tree_quants = agb_tree %>%
  dplyr::group_by(tree, year, model) %>%
  dplyr::summarize(agb_mean = mean(value, na.rm=TRUE),
                   agb_median = quantile(value, c(0.5)),
                   agb_lo = quantile(value, c(0.025)),
                   agb_hi = quantile(value, c(0.975)), .groups = 'keep')

species_id = agb_tree$taxon[1]
stem_id = Tr$id[which(Tr$stat_id == tree)]

grob <- grobTree(textGrob(paste0('Tree ', tree, '; Stem ID ', stem_id, '; Species ', species_id ), x=0.05,  y=0.9, hjust=0,
                          gp=gpar(col="black", fontsize=22)))

p1 = ggplot() +
  geom_ribbon(data = agb_tree_quants, aes(x = year, ymin = agb_lo, ymax = agb_hi, fill = model), alpha=0.5) +
  geom_line(data=agb_tree_quants, aes(x=year, y=agb_median, colour = model)) +
  xlab('year') +
  ylab('agb (kg)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)  +
  # ggtitle(paste0('Tree ', i)) +
  annotation_custom(grob)
print(p1)

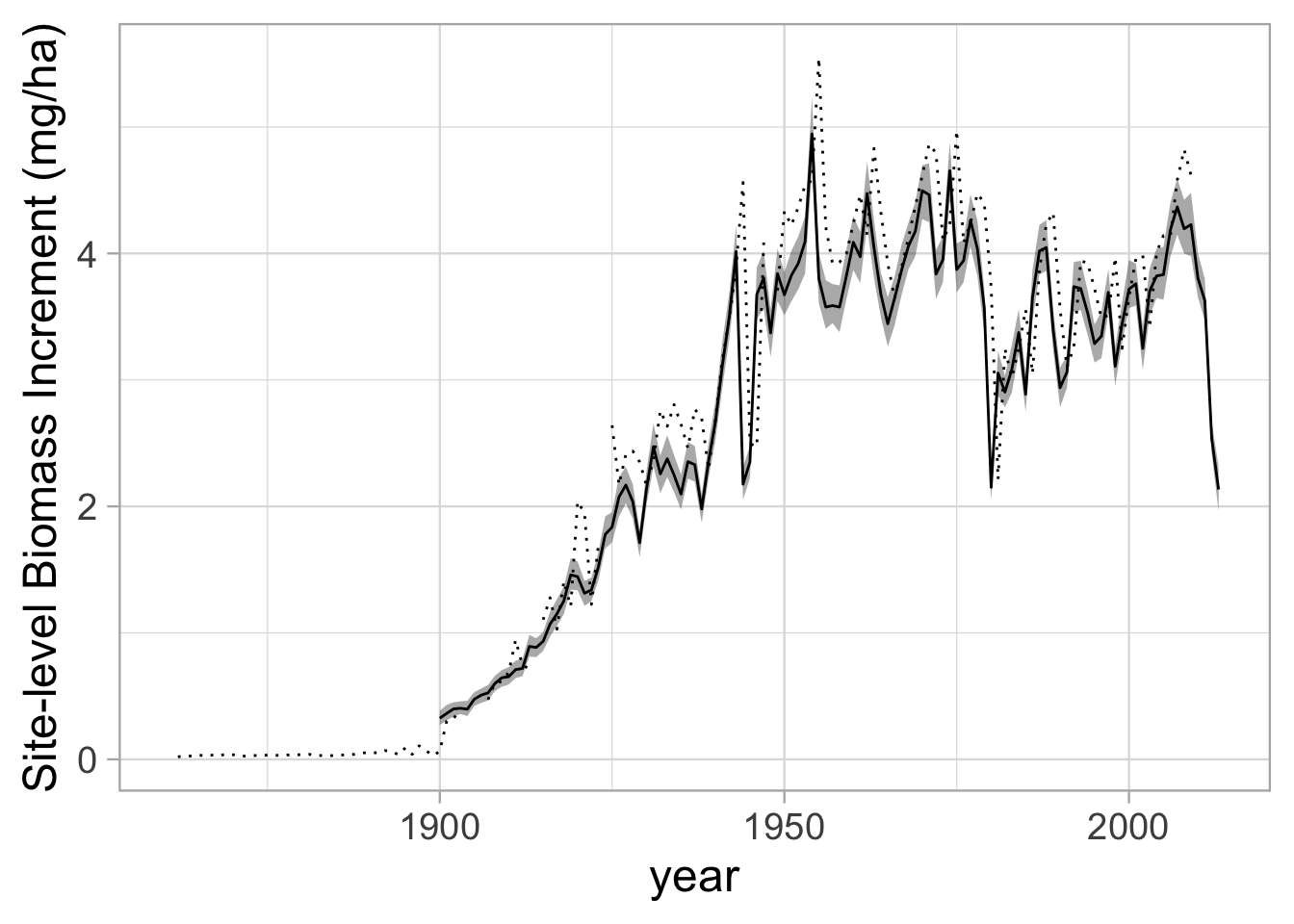

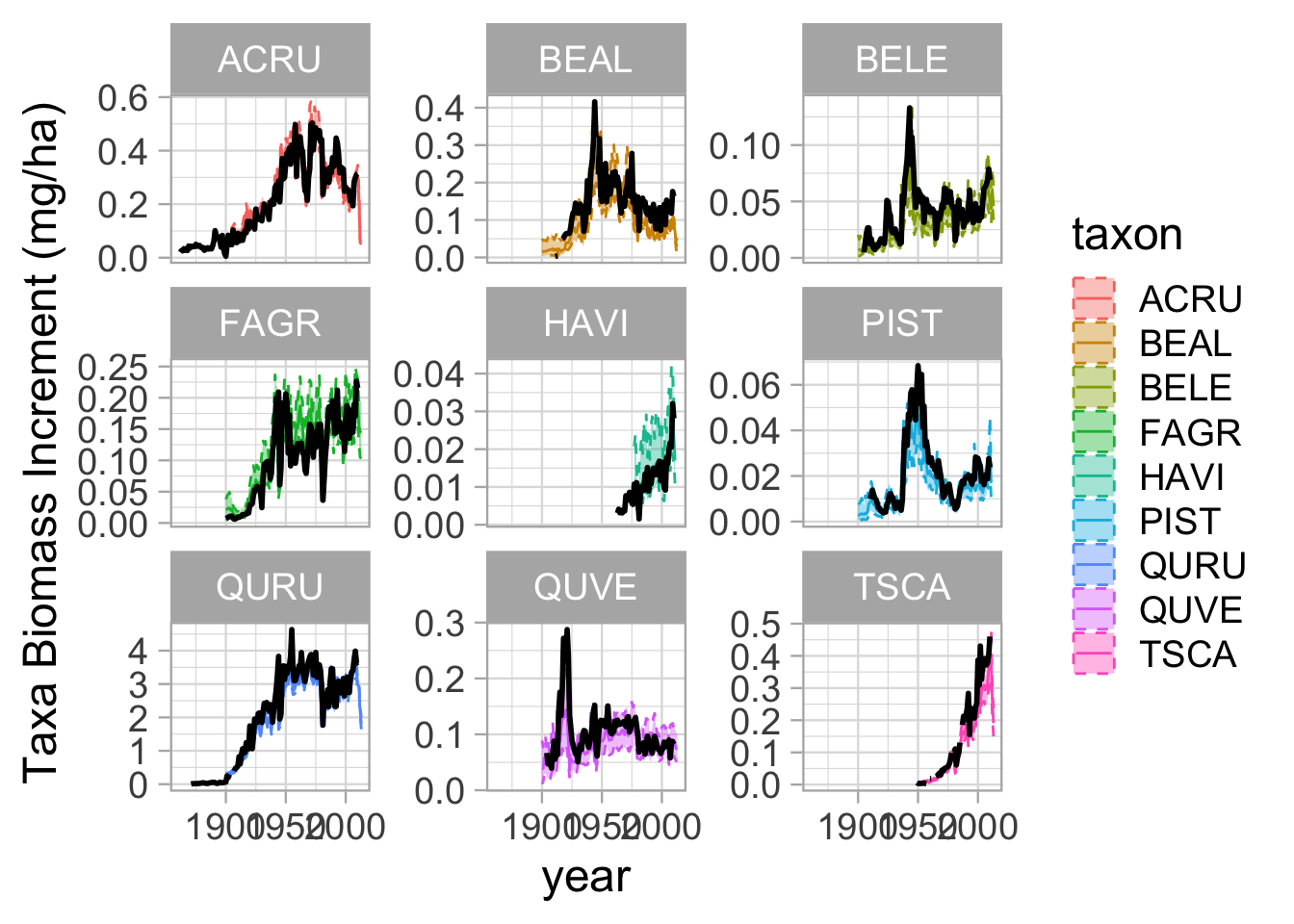

We also want to determine biomass increment, which is the amount of biomass the tree accummulates in a given year. For a given tree, and a given iteration, we have a biomass time series (a single line through time that shows the biomass time series for that tree). To find the biomass increment, we subtract previous year biomass from current year biomass. Barring factors other than growth, trees are assumed to increase in size through time (or stay the same size). This means that biomass increment for a tree is always greater than or equal to 0. When the tree dies, it no longer contributes to biomass accommulation (and is removed entirely from the live biomass forest pool).

Code
# first for RW only model
abi = apply(agb_array_RW, c(1,3), function(x) diff(x))
abi = aperm(abi, c(2, 1, 3))
abi_melt = melt(abi)
colnames(abi_melt) = c('tree', 'year', 'iter', 'value')
abi_melt = abi_melt %>% filter(!is.na(value))
abi_melt$year = years[abi_melt$year]
# abi_melt$plot = plot[abi_melt$tree]
abi_melt$taxon = taxon[abi_melt$tree]
abi_melt$model = rep("RW", nrow(abi_melt))
abi_melt$type = rep('abi',nrow(abi_melt))

tree=1
abi_tree = abi_melt[which(abi_melt$tree == tree),]
abi_tree_quants = abi_tree %>%
  dplyr::group_by(tree, year, model) %>%
  dplyr::summarize(abi_mean = mean(value, na.rm=TRUE),
                   abi_median = quantile(value, c(0.5)),
                   abi_lo = quantile(value, c(0.025)),
                   abi_hi = quantile(value, c(0.975)), .groups = 'keep')

p2 = ggplot() +
  geom_ribbon(data = abi_tree_quants, aes(x = year, ymin = abi_lo, ymax = abi_hi, fill = model), alpha=0.5) +
  geom_line(data=abi_tree_quants, aes(x=year, y=abi_median, colour = model)) +
  xlab('year') +
  ylab('abi (kg / year)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)  #+
# ggtitle(paste0('Tree ', i)) +
# annotation_custom(grob)
# print(p1)

grid.arrange(p1, p2, nrow = 2)

In this workflow we only consider trees that are above 5 cm diameter. To satisfy this constraint we need to filter out all model inferred tree diameters that are less than 5 cm. For a given tree, for a given year, if the mean diameter (across all iterations) is less than 5 cm, the samples are replaced with NA. This step ensures they won’t contribute to the species and site total biomass we will calculate.

Code
# first for RW only model
for (tree in 1:N_Tr){
  for (year in 1:N_years){

    # determine mean DBH for this year and tree
    dbh_mean = mean(dbh_array_RW[tree, year, ], na.rm=TRUE)

    # if smaller than 5 cm., eliminate the data
    if (is.na(dbh_mean) | dbh_mean >= 5) next
    dbh_array_RW[tree, year, ] = rep(NA, iter)
    agb_array_RW[tree, year, ] = rep(NA, iter)
  }
}

The sampling protocol used at Harvard Forest is described in Module 2, and is referred to as the double-nested circular design. As in Module 2, we need to perform a sampling correction to account for the fact that small trees (those with dbh less than 20 cm at time of sampling) were only sampled in the inner circle, while larger trees were sampled in both the inner circle and outer ring.

Code
idx_small  = which(pdbh<20)
idx_large = which(pdbh>=20)

# we need to adjust the biomass units from kg/plot to Mg/ha
inner_factor = (1 / (pi*13^2)) * (1/0.0001) * (1/1000)
outer_factor = (1 / (pi*20^2)) * (1/0.0001) * (1/1000)
agb_array_RW[idx_small,,] = agb_array_RW[idx_small,,] * inner_factor
agb_array_RW[idx_large,,] = agb_array_RW[idx_large,,] * outer_factor
Code
# melt down agb_array to data frame
agb_melt = melt(agb_array_RW)
colnames(agb_melt) = c('tree','year','iter','value')
agb_melt = agb_melt %>% filter(!is.na(value))
agb_melt$year = years[agb_melt$year]
agb_melt$plot = plot[agb_melt$tree]
agb_melt$taxon = taxon[agb_melt$tree]
agb_melt$model = rep("RW", nrow(agb_melt))
agb_melt$type = rep('ab',nrow(agb_melt))

# first for RW only model
abi = apply(agb_array_RW, c(1,3), function(x) diff(x))
abi = aperm(abi, c(2, 1, 3))
abi_melt = melt(abi)
colnames(abi_melt) = c('tree', 'year', 'iter', 'value')
abi_melt = abi_melt %>% filter(!is.na(value))
abi_melt$year = years[abi_melt$year]
abi_melt$plot = plot[abi_melt$tree]
abi_melt$taxon = taxon[abi_melt$tree]
abi_melt$model = rep("RW", nrow(abi_melt))
abi_melt$type = rep('abi',nrow(abi_melt))

Taxon-level Aboveground Biomass (AGB) and Aboveground Biomass Increment (AGBI)

Code
agb_taxon_by_iter = agb_melt %>%
  group_by(year, iter, taxon, plot, model) %>%
  # # sum up the taxon-level information by plot, iteration, year
  summarise( AGB.taxon.plot = sum(value, na.rm =TRUE)) %>% ungroup() %>%
  #
  # get the mean value across plots for each iteration:
  group_by(year, iter, taxon, model) %>%
   # dplyr::summarize(AGB.iter.mean = mean(value, na.rm = TRUE),
   #                  .groups='keep')
   dplyr::summarize(AGB.iter.mean = mean(AGB.taxon.plot, na.rm = TRUE),
                     .groups='keep')
`summarise()` has grouped output by 'year', 'iter', 'taxon', 'plot'. You can
override using the `.groups` argument.
Code
agb_taxon_summary = agb_taxon_by_iter %>%ungroup() %>%
  group_by(year, taxon, model) %>%
  dplyr::summarize(AGB.mean = mean(AGB.iter.mean, na.rm = TRUE),
                   AGB.sd = sd(AGB.iter.mean, na.rm=TRUE),
                   AGB.lo = quantile(AGB.iter.mean, c(0.025), na.rm=TRUE),
                   AGB.hi = quantile(AGB.iter.mean, c(0.975), na.rm=TRUE),
                   .groups='keep')

abi_taxon_by_iter = abi_melt %>%
  group_by(year, iter, taxon, plot, model) %>%
  summarise( AGBI.taxon.plot = sum(value, na.rm =TRUE)) %>% ungroup() %>%
  group_by(year, iter, taxon, model) %>%
  dplyr::summarize(ABI.iter.mean = mean(AGBI.taxon.plot, na.rm = TRUE),
                   .groups='keep')
`summarise()` has grouped output by 'year', 'iter', 'taxon', 'plot'. You can
override using the `.groups` argument.
Code
#taxon summary data without plot
abi_taxon_summary = abi_taxon_by_iter %>% ungroup() %>%
  group_by(year, taxon, model) %>%
  dplyr::summarize(ABI.mean = mean(ABI.iter.mean, na.rm = TRUE),
                   ABI.sd = sd(ABI.iter.mean, na.rm=TRUE),
                   ABI.lo = quantile(ABI.iter.mean, c(0.025), na.rm=TRUE),
                   ABI.hi = quantile(ABI.iter.mean, c(0.975), na.rm=TRUE),
                   .groups='keep')
Code
ggplot(data = agb_taxon_summary)+
  geom_ribbon(aes(x=year, ymin=AGB.lo, ymax=AGB.hi, colour=taxon, fill=taxon), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = AGB.mean, color = taxon))+
  facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('biomass (mg/ha)')

Code
ggplot(data = abi_taxon_summary)+
  geom_ribbon(aes(x=year, ymin=ABI.lo, ymax=ABI.hi, colour=taxon, fill=taxon), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = ABI.mean, color = taxon))+
  facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('biomass increment (mg/ha)')

Stand-level Biomass and Biomass increment

Code
agb_all_plot_by_iter <- agb_melt |>
  group_by(year, iter, plot, model) |>
  # sums all of the trees by plot
  dplyr::summarize(AGB.sum = sum(value),
            .groups = 'keep')

agb_site_by_iter <- agb_all_plot_by_iter |>
  group_by(year, iter, model) |>
  dplyr::summarize(AGB.iter = mean(AGB.sum),
                   .groups = 'keep')

agb_site_summary = agb_site_by_iter %>%
  group_by(year, model) %>%
  dplyr::summarize(abmean = mean(AGB.iter, na.rm=T),
    ab025 = quantile(AGB.iter, 0.025),
                   ab50 = quantile(AGB.iter, 0.5),
                   ab975 = quantile(AGB.iter, 0.975),
                   .groups = 'keep') %>%
  ungroup()



abi_all_plot_by_iter <- abi_melt |>
  group_by(year, iter, plot, model) |>
  dplyr::summarize(ABI.sum = sum(value),
            .groups = 'keep')

abi_site_by_iter <- abi_all_plot_by_iter |>
  group_by(year, iter, model) |>
  dplyr::summarize(ABI.iter = mean(ABI.sum),
                   .groups = 'keep')

abi_site_summary = abi_site_by_iter %>%
  group_by(year, model) %>%
  dplyr::summarize(abimean = mean(ABI.iter, na.rm=T),
    abi025 = quantile(ABI.iter, 0.025),
                   abi50 = quantile(ABI.iter, 0.5),
                   abi975 = quantile(ABI.iter, 0.975),
                   .groups = 'keep') %>%
  ungroup()
Code

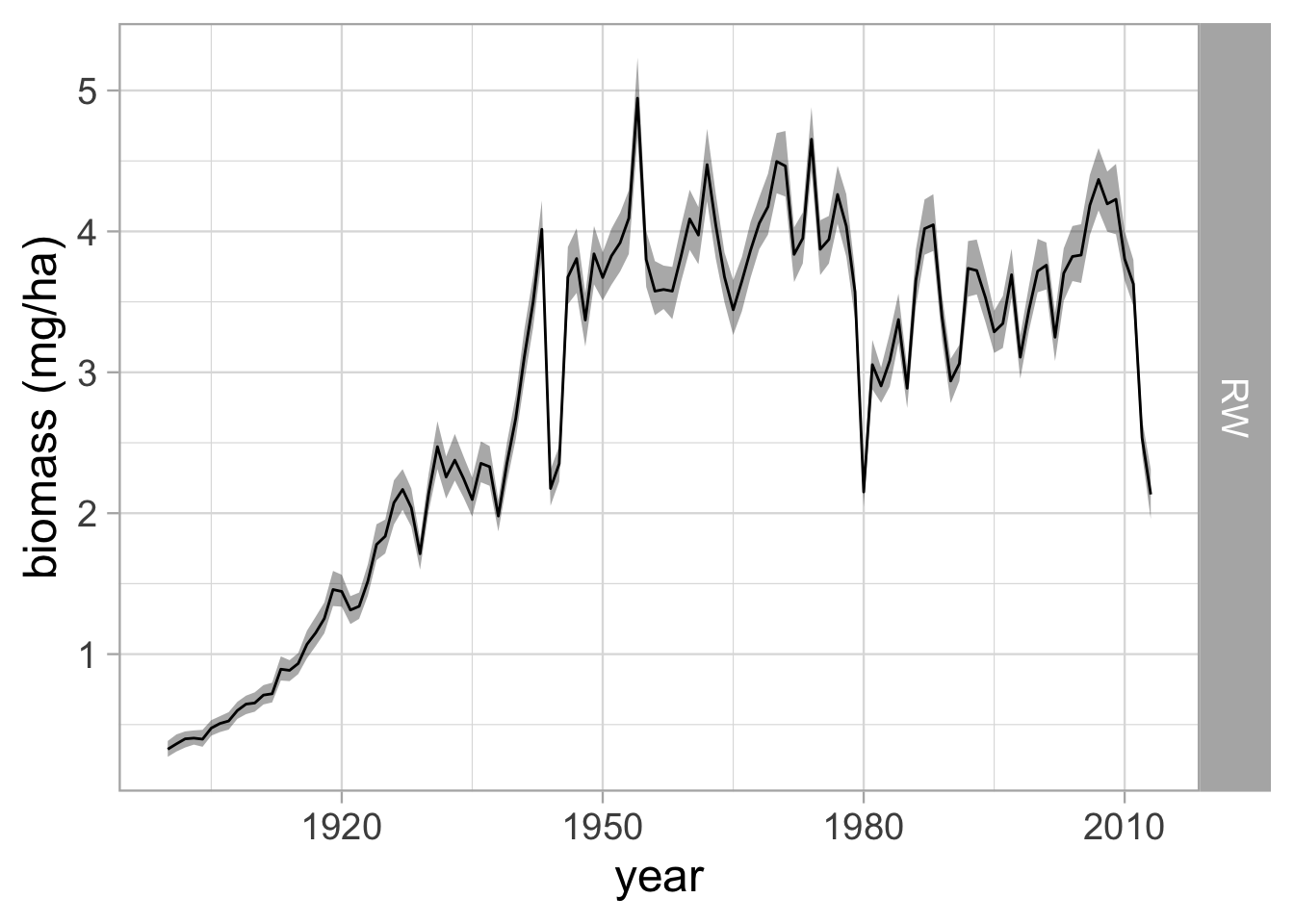

ggplot(data = agb_site_summary)+
  geom_ribbon(aes(x=year, ymin=ab025, ymax=ab975), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = abmean))+
  facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('biomass (mg/ha)')

Code
ggplot(data = abi_site_summary)+
  geom_ribbon(aes(x=year, ymin=abi025, ymax=abi975), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = abimean))+
  facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('biomass (mg/ha)')

6. Comparing RW-only model to our data-based estimates

Code
#

TR_AGB = readRDS('data/TR_AGB_ests_allodb.rds')
TR_AGB$tree = allTrees$stat_id[match(TR_AGB$id, allTrees$ID)]

TR_AGB = TR_AGB %>% group_by(tree) %>%

  arrange(cal.year) %>%

  mutate(AGBI_kg = AGB_kg - lag(AGB_kg))

head(TR_AGB)
# A tibble: 6 × 19
# Groups:   tree [1]
  cal.year cored.cal.year incr.avg id       dbh cum.diainc dia.inc  plot taxon
     <dbl>          <dbl>    <dbl> <chr>  <dbl>      <dbl>   <dbl> <dbl> <chr>
1     1861           2010     1.99 LF3017    50       43.5   0.398     3 ACRU
2     1862           2010     3.01 LF3017    50       43.1   0.602     3 ACRU
3     1863           2010     3.49 LF3017    50       42.5   0.698     3 ACRU
4     1864           2010     3.02 LF3017    50       41.8   0.605     3 ACRU
5     1865           2010     3.48 LF3017    50       41.2   0.696     3 ACRU
6     1866           2010     2.55 LF3017    50       40.5   0.51      3 ACRU
# ℹ 10 more variables: dbh_cm_bc <dbl>, SPCD <dbl>, COMMON_NAME <chr>,
#   GENUS <chr>, SPECIES <chr>, `Scientific Name` <chr>, AGB_kg <dbl>,
#   tph_corr <dbl>, tree <int>, AGBI_kg <dbl>
Code
TR_AGB_sub = subset(TR_AGB, tree==1)


p1 = ggplot() +
  geom_ribbon(data = agb_tree_quants, aes(x = year, ymin = agb_lo, ymax = agb_hi, fill = model), alpha=0.5) +
  geom_line(data=agb_tree_quants, aes(x=year, y=agb_median, colour = model)) +
  geom_line(data=TR_AGB_sub, aes(x=cal.year, y=AGB_kg)) +
  xlab('year') +
  ylab('Tree Level Biomass (kg)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)  +
  # ggtitle(paste0('Tree ', i)) +
  annotation_custom(grob)
print(p1)

Code
p2 = ggplot() +
  geom_ribbon(data = abi_tree_quants, aes(x = year, ymin = abi_lo, ymax = abi_hi, fill = model), alpha=0.5) +
  geom_line(data=abi_tree_quants, aes(x=year, y=abi_median, colour = model)) +
  geom_line(data=TR_AGB_sub, aes(x=cal.year, y=AGBI_kg)) +
  xlab('year') +
  ylab('Tree-level Biomass Increment (kg / year)') +
  xlim(c(year_lo, year_hi)) +
  theme_bw(16)
print(p2)
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_line()`).

Code
TAXA.AGB <- TR_AGB %>% group_by(taxon, COMMON_NAME, GENUS, SPECIES, cal.year, plot) %>%

  summarise(AGB_Mg_ha_taxa_plot = sum(AGB_kg*tph_corr),
            AGBI_Mg_ha_taxa_plot = sum(AGBI_kg*tph_corr)) %>%

  filter(cal.year <= 2010) %>%

  ungroup() %>%

  group_by(taxon, COMMON_NAME, GENUS, SPECIES, cal.year) %>%

  summarise(AGB_Mg_ha_taxa = mean(AGB_Mg_ha_taxa_plot, na.rm = TRUE),
            AGBI_Mg_ha_taxa = mean(AGBI_Mg_ha_taxa_plot, na.rm =TRUE)) #%>%
`summarise()` has grouped output by 'taxon', 'COMMON_NAME', 'GENUS', 'SPECIES',
'cal.year'. You can override using the `.groups` argument.
`summarise()` has grouped output by 'taxon', 'COMMON_NAME', 'GENUS', 'SPECIES'.
You can override using the `.groups` argument.
Code
site.AGB <- TR_AGB %>% group_by(cal.year, plot) %>%

  summarise(AGB_Mg_ha_plot = sum(AGB_kg*tph_corr),
            AGBI_Mg_ha_plot = sum(AGBI_kg*tph_corr)) %>%

  filter(cal.year <= 2010) %>%

  ungroup() %>%

  group_by( cal.year) %>%

  summarise(AGB_Mg_ha = mean(AGB_Mg_ha_plot, na.rm = TRUE),
            AGBI_Mg_ha = mean(AGBI_Mg_ha_plot, na.rm =TRUE))
`summarise()` has grouped output by 'cal.year'. You can override using the
`.groups` argument.
Code
ggplot(data = agb_taxon_summary)+
  geom_ribbon(aes(x=year, ymin=AGB.lo, ymax=AGB.hi, colour=taxon, fill=taxon), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = AGB.mean, color = taxon))+
   geom_line(data = TAXA.AGB, aes(x = cal.year, y = AGB_Mg_ha_taxa), size = 1)+
  #facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('Taxa Biomass (mg/ha)')+facet_wrap(~taxon, scales = "free_y")
Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

Code
ggplot(data = abi_taxon_summary)+
  geom_ribbon(aes(x=year, ymin=ABI.lo, ymax=ABI.hi, colour=taxon, fill=taxon), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = ABI.mean, color = taxon))+
  geom_line(data = TAXA.AGB, aes(x = cal.year, y = AGBI_Mg_ha_taxa), size = 1)+
  #facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('Taxa Biomass Increment (mg/ha)')+facet_wrap(~taxon, scales = "free_y")
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_line()`).

Code
# site -level AGB:
ggplot(data = agb_site_summary)+
  geom_ribbon(aes(x=year, ymin=ab025, ymax=ab975), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = abmean))+
  geom_line(data = site.AGB, aes(x = cal.year, y = AGB_Mg_ha), linetype = 3)+
  #facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('Site-level Biomass (mg/ha)')

Code
ggplot(data = abi_site_summary)+
  geom_ribbon(aes(x=year, ymin=abi025, ymax=abi975), alpha=0.4, linetype=2) +
  geom_line(aes(x = year, y = abimean))+
  geom_line(data = site.AGB, aes(x = cal.year, y = AGBI_Mg_ha), linetype = 3)+
  #facet_grid(model~., scales='free_y') +
  theme_light(18) +
  ylab('Site-level Biomass Increment (mg/ha)')
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_line()`).

Code
saveRDS(abi_site_summary, "summary/abi_site_summary_TR.RDS")
saveRDS(agb_site_summary, "summary/agb_site_summary_TR.RDS")

saveRDS(abi_taxon_summary, "summary/abi_taxon_summary_TR.RDS")
saveRDS(agb_taxon_summary, "summary/agb_taxon_summary_TR.RDS")
